Details
Details

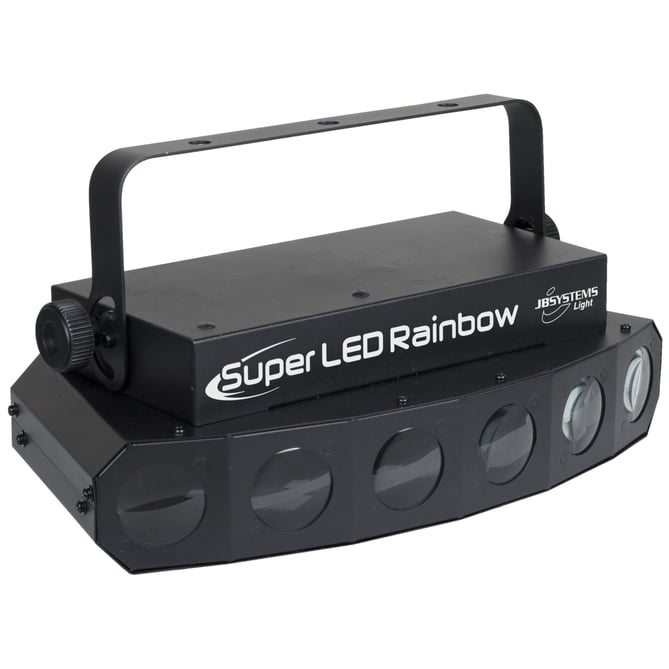

- A compact but powerful multi-beam LED-effect!
- Each of the 6 lenses contains a powerful 10Watt RGBW LED.
- Thanks to perfect color mixing the six beams can have any color you like!
- Each 9° beam can be controlled individually to create an endless combination of customized effects.
- Modes:
- Standalone: sound activated with internal mic
- DMX: 28 channels for full control or easy control using only 1 or 8 channels.
- Master/slave: wonderful synchronized shows
- SMART-DMX (previously known as DMX-MSL mode): thanks to this revolutionary new feature several Super led rainbow units, working in master/slave, can still be controlled by DMX! Even while connected in a DMX chain! (optional mini DMX splitter required)
- 2 optional remote controllers available:
- CA-8: wired remote for improved (DMX) master/slave control
- RF-8 Set: wireless RF-remote for improved (DMX) master/slave control
- Uses six powerful 10Watt RGBW LEDs:
- Extremely brilliant beams compared to effects with halogen lamps
- More dynamic effects compared to effects based on halogen lamps
- No lamp replacements and very low power consumption
- Mains IEC in/outputs for easy linking using optional IEC cables
- Perfect for different applications: discos, clubs, mobile DJs, stage, ...
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 41.8 x 23.3 x 12;2 cm |
|---|---|
| General : Weight (kg) | 4.18 |
| General : Powerinput | AC 240V, 50Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 80.6 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Control : optional remote | CA-8, RF8-SET |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 28 |
| Light : lamp socket | none |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue, White |
| Light : mix colors | No |
| Light : min. beam angle (°) | 9 |
| Light : max. beam angle (°) | 9 |
| Light : max. refresh rate (kHz) | No |
| Connections : output | 3 pin XLR, IEC |
| Brand | JB SYSTEMS |
| EANCode | 5420025641715 |
Manual & Downloads
Manual & Downloads
 SUPER LED RAINBOW Manual Size: (2.48 MB) |
SUPER LED RAINBOW Manual EN / FR / NL / DE / ES |
| SUPER LED RAINBOW EC Declaration Size: (569.67 KB) |
SUPER LED RAINBOW EC Declaration of Conformity |
| SUPER_LED_RAINB PDF leaflet Deutsch Size: (1016.98 KB) |
PDF_LEAFLET_SUPER_LED_RAINB_04171_de.pdf |
| SUPER_LED_RAINB PDF leaflet English Size: (1016.51 KB) |
PDF_LEAFLET_SUPER_LED_RAINB_04171_en.pdf |
| SUPER_LED_RAINB PDF leaflet Français Size: (1018.89 KB) |
PDF_LEAFLET_SUPER_LED_RAINB_04171_fr.pdf |
| SUPER_LED_RAINB PDF leaflet Nederlands Size: (1016.82 KB) |
PDF_LEAFLET_SUPER_LED_RAINB_04171_nl.pdf |
