Details
Details

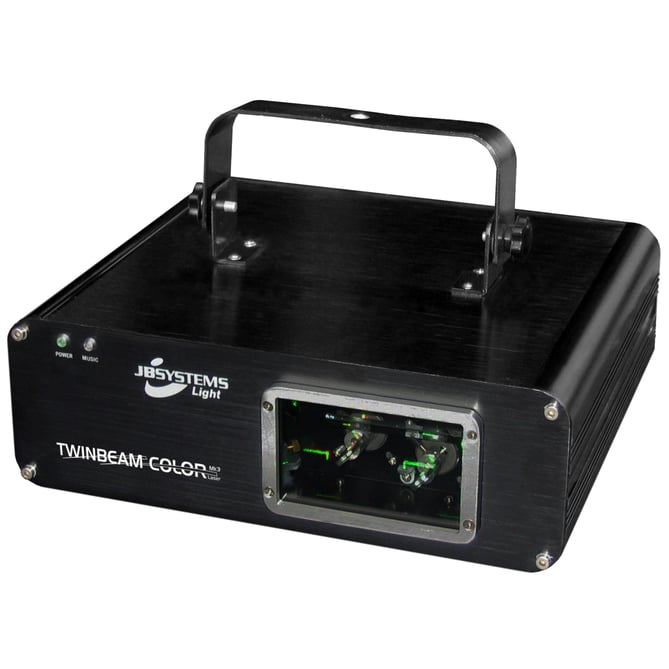

- Produces 2 synchronized laser beams
- Generates dynamic 3 color laser shows, perfect for fixed and mobile installations.
- RGY (Red, Green, Yellow) Class 3B Laser
- o 650nm Red 150mW beam
- o 532nm Green 150mW beam
- o Mixed Yellow 300mW beam
- The color of the beams changes all the time using laser blanking technology.
- Several working modes:
- o DMX controlled, 1 or 9 channels
- o Stand-alone with built-in microphone
- o Stand-alone automatic mode
- Preprogrammed multi-color laser shows
- DMX-addressing with LED display
- Complies to EN/IEC 60825-1 for Laser Safety
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 26 x 30 x 10 cm |
|---|---|
| General : Weight (kg) | 4.46 |
| General : Powerinput | AC 240V, 50Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 9 |
| Light : lamp socket | No |
| Light : lamp | No |
| Light : colors | Red, Green |
| Light : mix colors | Yes |
| Light : functions | N/A |
| Light : max. refresh rate (kHz) | No |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025642316 |
Manual & Downloads
Manual & Downloads
 TWINBEAM COLOR Laser Mk3 Manual Size: (2.34 MB) |
TWINBEAM COLOR Laser Mk3 Manual EN / FR / NL / DE / ES / PT |
 TWINBEAM COLOR Laser Mk3 Chromateq fixture files Size: (1.99 KB) |
TWINBEAM COLOR Laser Mk3 Chromateq fixture files |
| TWINBEAM_COLOR_ PDF leaflet Deutsch Size: (895.26 KB) |
PDF_LEAFLET_TWINBEAM_COLOR__04231_de.pdf |
| TWINBEAM_COLOR_ PDF leaflet English Size: (894.66 KB) |
PDF_LEAFLET_TWINBEAM_COLOR__04231_en.pdf |
| TWINBEAM_COLOR_ PDF leaflet Français Size: (896.61 KB) |
PDF_LEAFLET_TWINBEAM_COLOR__04231_fr.pdf |
| TWINBEAM_COLOR_ PDF leaflet Nederlands Size: (894.59 KB) |
PDF_LEAFLET_TWINBEAM_COLOR__04231_nl.pdf |
