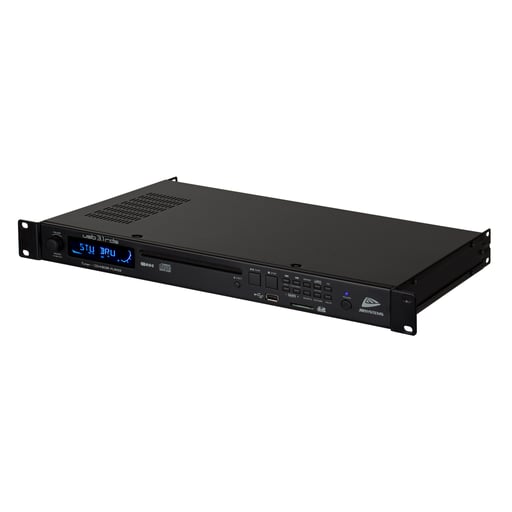

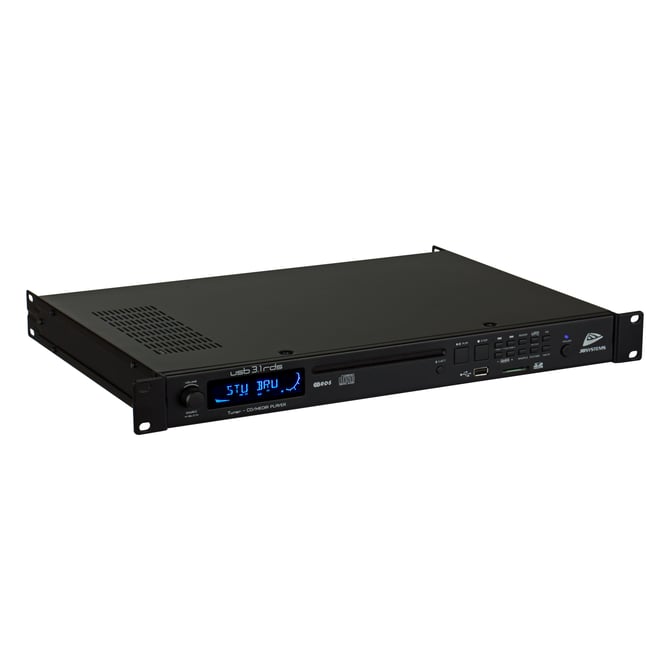

- The USB3.1-RDS combines different audio sources in a small 19"/1U housing, perfect for all kinds of fixed installations such as pubs, shops, hotels, restaurants, shopping malls, … :
- AM / FM-radio: with RDS and 18 station presets
- Slot-in CD-player: plays both audio CDs and MP3/WMA files (supports CD-R and CD-RW disks)
- USB / SD-card media player: supports USB-sticks and SD/SDHC-cards up to 64GB
- Support for WMA and MP3-tracks up to 48kHz / 320kbps
- LCD-display shows FM RDS-station names and ID3-tags (title, artist, …) for MP3 and WMA-tracks
- Different playback modes: normal, random, repeat one/folder/all.

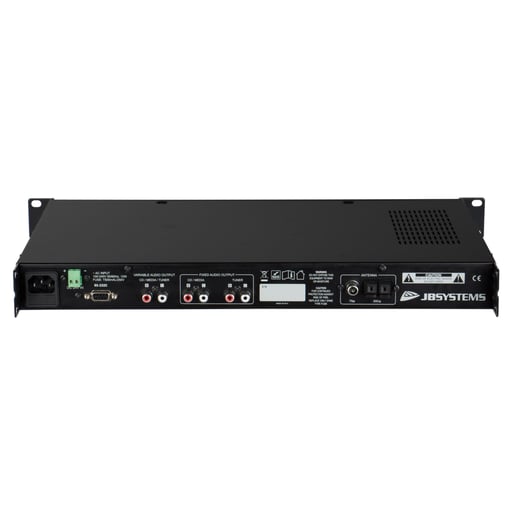

- 2 fixed + 1 combined RCA/cinch output:
- Perfect for use in multi-zone installations: FM-radio and media/CD-player can operate simultaneously and send different music to their separate outputs!
- For simple installations a combined “tuner & media/CD-player" output with volume control is available.
- The RS-232 input makes remote control by for example “home automation systems" possible.
- 24Vdc emergency backup supply on EuroBlock connector.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48.2 x 4.4 x 33 cm |
|---|---|
| General : Weight (kg) | 4 |
| General : Color | black |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 10 |
| General : Display | LCD |
| General : Fixation | 19" rack mountable |
| General : RU | 1U |
| General : IP rating | indoor |
| Audio : supported audio formats | MP3, WMA |
| Audio : supported audio media | CD, USB |
| Connections : input | usb, IEC |
| Connections : output | rca |
| Brand | JB SYSTEMS |
| EANCode | 5420025603645 |
Manual & Downloads
Manual & Downloads
 USB3.1-RDS Manual v1.1 Size: (1.88 MB) |
USB3.1-RDS Manual v1.1 EN / NL / FR / DE / ES |
| USB3.1-RDS EC Declaration Size: (569.74 KB) |
USB3.1-RDS EC Declaration of Conformity |
| USB3.1-RDS PDF leaflet Deutsch Size: (390.71 KB) |
PDF_LEAFLET_USB3.1-RDS_00364_de.pdf |
| USB3.1-RDS PDF leaflet English Size: (389.67 KB) |
PDF_LEAFLET_USB3.1-RDS_00364_en.pdf |
| USB3.1-RDS PDF leaflet Français Size: (391.89 KB) |
PDF_LEAFLET_USB3.1-RDS_00364_fr.pdf |
| USB3.1-RDS PDF leaflet Nederlands Size: (390.19 KB) |
PDF_LEAFLET_USB3.1-RDS_00364_nl.pdf |
