Details
Details

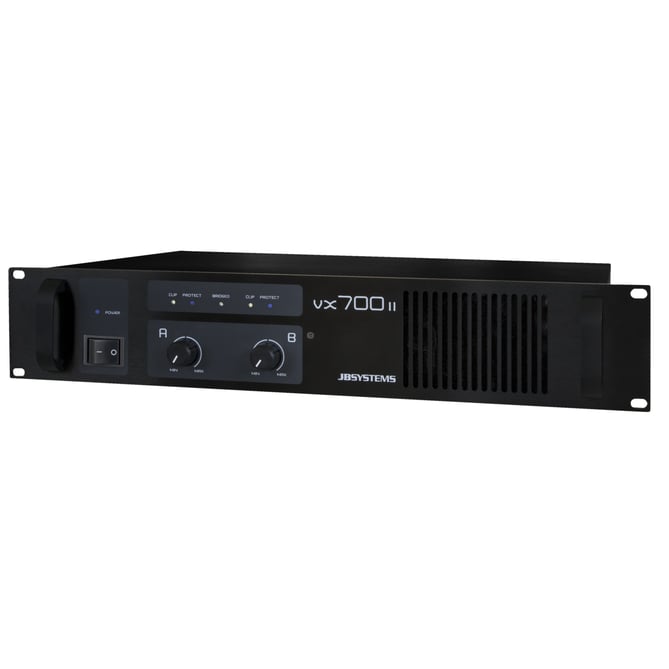

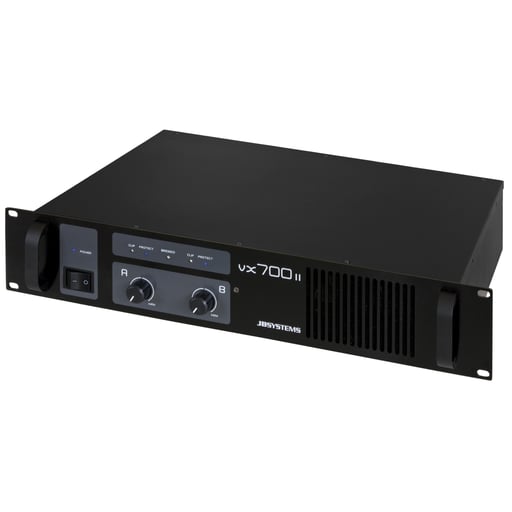

- Professional amplifier for all-round sound reproduction
- Power stereo:
- 2x 350Wrms @ 4Ω
- 2x 200Wrms @ 8Ω
- Power bridge:
- 1x 700Wrms @ 8Ω
- Short Circuit protection
- DC current protection
- High temperature protection
- Forced fan cooling
- Bridge function
- Built-in limiters

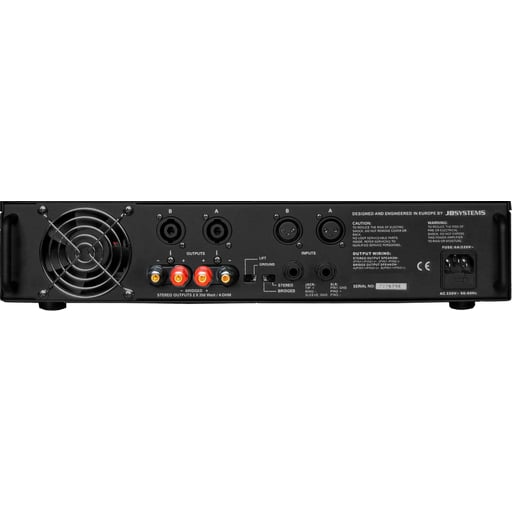

- Balanced XLR and Jack inputs
- Ground/lift switch
- Speakon® compatible speaker outputs
- Binding post speaker outputs (screws)
- Strong Aluminum 19' front
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 8.8 x 48.3 x 26 cm |
|---|---|
| General : Weight (kg) | 13 |
| General : Color | black |
| General : Powerinput | AC 240V, 50Hz |
| General : Energy Label | No |
| General : Display | none |
| General : Fixation | 19" rack mountable |
| General : RU | 2U |
| General : IP rating | indoor |
| Audio : min. frequency (Hz) | 10 |
| Audio : max. frequency (Hz) | 50000 |
| Audio : S/N ratio (> dB) | 85 |
| Audio : damping factor (>...) | 200 |
| Audio : max. output channels | 2 |
| Audio : Wrms 4Ω stereo, per channel | 350 |
| Audio : Wrms 8Ω stereo, per channel | 200 |
| Audio : Wrms 8Ω bridge | 700 |
| Audio : functions | bridge mode, limiter |
| Connections : input | 3 pin XLR, jack, IEC |
| Connections : output | speakon |
| Brand | JB SYSTEMS |
| EANCode | 5420025602952 |
Manual & Downloads
Manual & Downloads
 VX700 II - Manual Size: (1.02 MB) |
VX700 II - Manual EN / FR / NL / DE / ES / PT |
| VX700 II - EC Declaration Size: (245.05 KB) |
VX700 II - EC Declaration of Conformity |
| VX700_II PDF leaflet Deutsch Size: (1.14 MB) |
PDF_LEAFLET_VX700_II_B00295_de.pdf |
| VX700_II PDF leaflet English Size: (1.14 MB) |
PDF_LEAFLET_VX700_II_B00295_en.pdf |
| VX700_II PDF leaflet Français Size: (1.14 MB) |
PDF_LEAFLET_VX700_II_B00295_fr.pdf |
| VX700_II PDF leaflet Nederlands Size: (1.14 MB) |
PDF_LEAFLET_VX700_II_B00295_nl.pdf |
Reviews & References
Customer Reviews (2)
- Excellent all round amplifier.Review by Dillon
- Iv had this amplifier for over 5 years now and it is still running good as new. Iv opened it up and all the components that are used are for sure quality and just looks well engineered.I would definitely recommend this amplifier to anyone who is looking for this rage of output,It is extremely robust and well put together. This amplifier will last you a very long time if well kept after. The sound quality is excellent,Highs and mids are very clear and the bass is just right. I would definitely recommend increasing the low frequencies on your mixer with this amplifier but it is a perfect all round amplifier and for sure is quality. (Posted on 9/9/2017)
- super versterkerReview by cyberstorm81
-
Heb deze als cadeautje gekregen van vriend speelt al jaar bij mij thuis amai super versterker gewoon boxen van 350 watt en 250 watt op aangesloten met sub van 200watt amai kand kamer laten daveren hier echt rachtig doen zuiver geluid goeie bass echt droom dingetje .......natuurlijk nooit over gaan als hij clipped en je hebt droom van versterker met deze echt dik toppie niet kapot te krijgen en waar voor zijn geld zeker kopen deze echte aanrader groetjes.
Got this as a gift from a friend. I have it for over a year and I think it is a super amplifier. I use it for my 250 Watt and 350 watt speakers in combination with a 200 Watt subwoofer and it makes my room shake.
It is very powerful and reproduces a pure sound and good bass. If you don't let it clip, you have a dream amplifier. It is a very strong amplifier and good value for the money. I highly recommend this amplifier. Greetings. (Posted on 1/31/2017)
