Details
Details

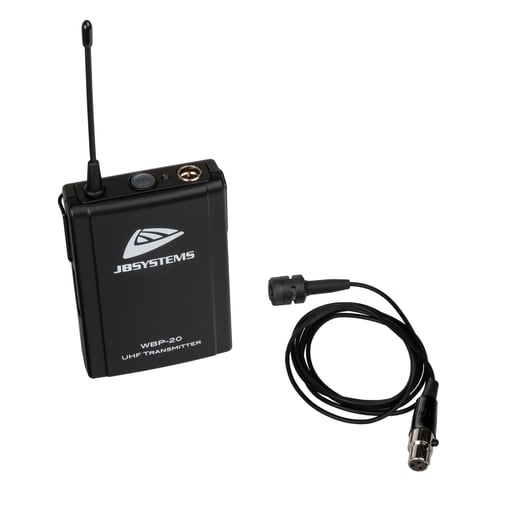

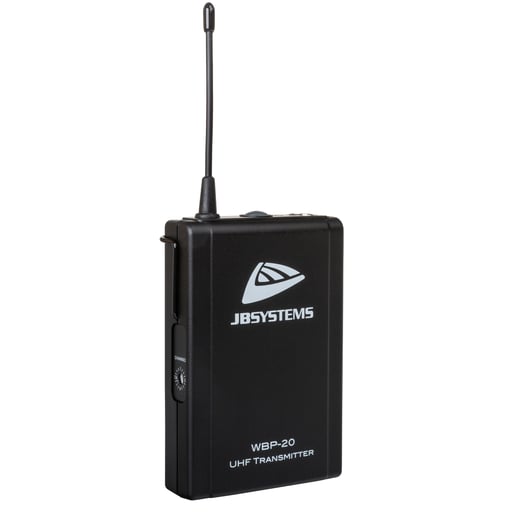

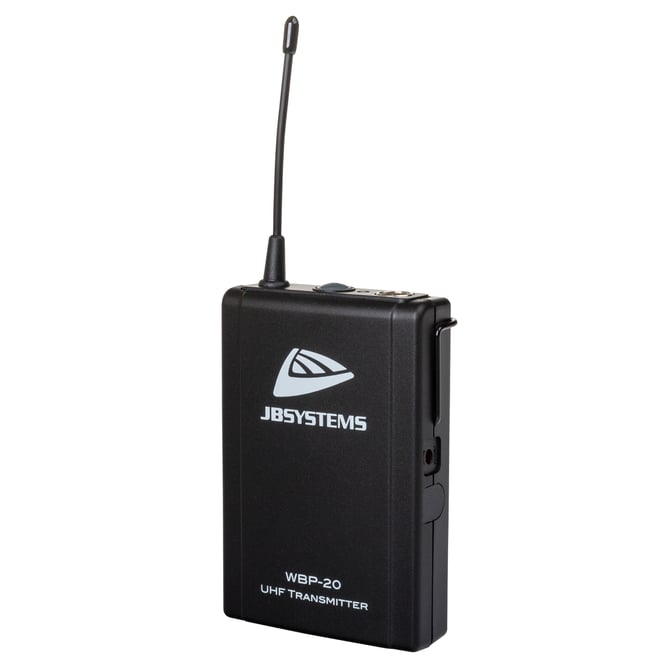

- Optional wireless beltpack.
- Carrier Frequency Range: UHF band: 863 - 865 MHz
- RF Power Output: 10mW (max.)
- Oscillation Mode: PLL synthesized, 16Channel selectable
- Frequency Stability: ±0,005%
- Maximum Deviation: ±20kHz with limiting compressor
- Spurious Emission: ＞60dB below carrier frequency
- T.H.D.: ＜1,0% (at 1KHz)
- Microphone Capsule:
- Handheld: uni-directional dynamic
- Lavalier: uni-directional electret condenser unit - Tone Signal: 32,768 kHz
- Battery:
- DC 3V (2x 1,5V AA size alkaline batteries )
- ORDC 2.4V (2x 1,2V AA size rechargeable batteries) - Current consumption: 120mA ±10mA @ 3V
Technical Specifications
Technical Specifications
| General : Weight (kg) | 0.2 |
|---|---|
| General : Powerinput | Battery |
| General : Energy Label | No |
| General : Color | black |
| Audio : max. frequency (Hz) | 20000 |
| Audio : sensitivity (dB 1W/1m) | 80 |
| Audio : microphone direction | Unidirectional |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025604413 |
Manual & Downloads
Manual & Downloads
 WBP-20 Manual Size: (1.33 MB) |
WBP-20 Manual |
| WBP-20 EC declaration Size: (580.42 KB) |
WBP-20 - EC declaration |
