New

WBP-200

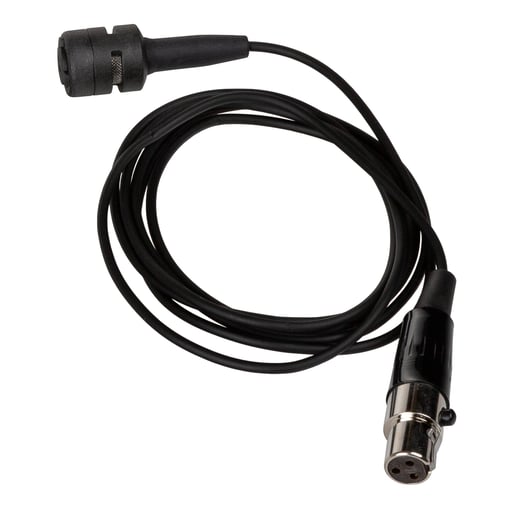

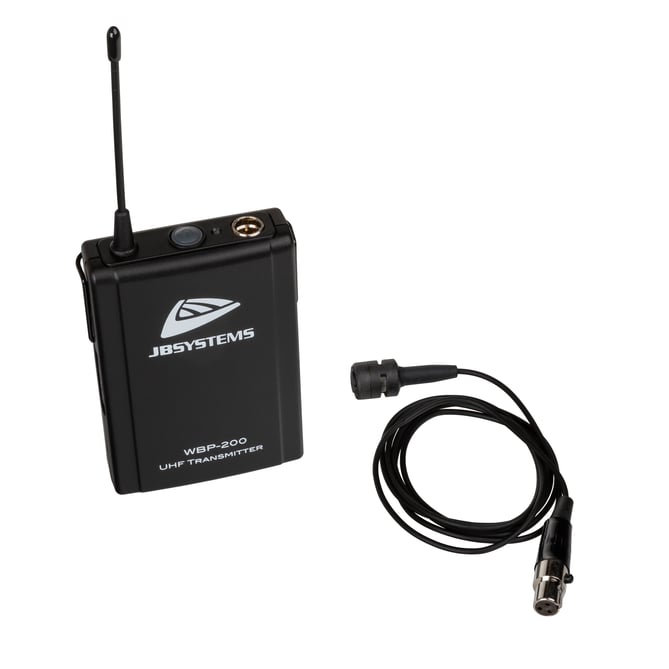

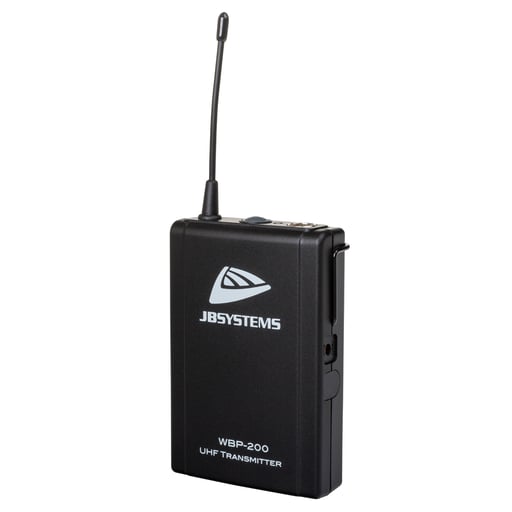

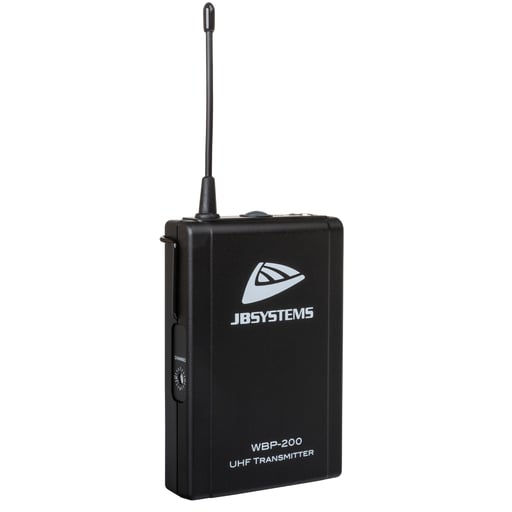

Wireless beltpack with lavalier microphone.
SKU: B08304
EANCODE: 5420025683043

Details

Details

  • Optional wireless beltpack with lavalier microphone.
  • Compatible with our JB Systems WHS-20 headset.
  • Carrier Frequency Range: UHF band: 823-832/863-865MHz
  • RF Power Output: 10mW (max.)
  • Oscillation Mode: PLL synthesized, 16Channel selectable
  • Frequency Stability: ±0,005%
  • Maximum Deviation: ±20kHz with limiting compressor
  • Spurious Emission: >60dB below carrier frequency
  • T.H.D.: <1,0% (at 1KHz)
  • Microphone Capsule:
    - Handheld: uni-directional dynamic
    - Lavalier:    uni-directional electret condenser unit
  • Tone Signal:     32,768 kHz
  • Battery:
    - DC 3V (2x 1,5V AA size alkaline batteries )
    - ORDC 2.4V (2x 1,2V AA size rechargeable batteries)
  • Current consumption:     120mA  ±10mA @ 3V

Technical Specifications

Technical Specifications

General : Application DJ & Club, Stage & Rental
General : Weight (kg) 0.2
General : Powerinput Battery
General : Energy Label No
General : Color black
Audio : max. frequency (Hz) 20000
Audio : sensitivity (dB 1W/1m) 80
Audio : microphone direction Unidirectional
Brand JB SYSTEMS
EANCode 5420025683043
