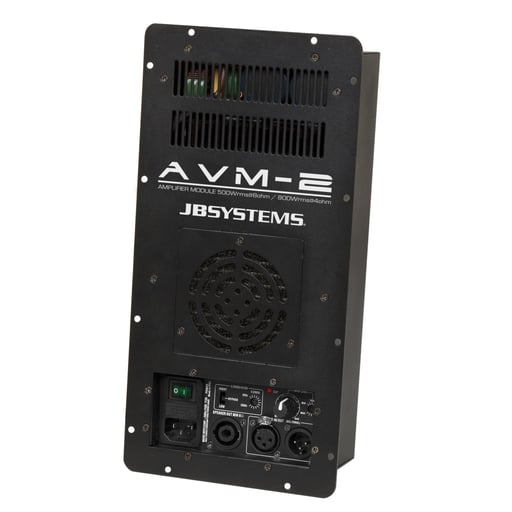

- Class-D amplifier module for installation inside the VIBE15 Mk2, VIBE30 Mk2 and VIBE15-SUB Mk2 speakers
- All you need is a screwdriver and 5 minutes of your time to make the transformation, no technical skills required!
- High output power: 500Wrms @ 8ohm ~ 800Wrms @ 4ohm
- Balanced / unbalanced line input/output (XLR) with volume control.
- 90-250Hz adjustable hi-cut filter for use in active subwoofers.
- Speakon output for optional passive 8ohm cabinet. (preferable same model)
- IEC input mains connector with integrated switch.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 32 x 16 x 7.8 cm |
|---|---|
| General : Weight (kg) | 2.79 |
| General : Color | black |
| General : Powerinput | AC 240V, 50Hz |
| General : Energy Label | No |
| General : Power consumption W | 1000 |
| General : Display | none |
| General : IP rating | indoor |
| Audio : min. frequency (Hz) | 20 |
| Audio : max. frequency (Hz) | 20000 |
| Audio : frequency range | ... Hz - ... Hz |
| Audio : S/N ratio (> dB) | 88 |
| Audio : damping factor (>...) | 350 |
| Audio : Wrms 4Ω stereo, per channel | 800 |
| Audio : Wrms 8Ω stereo, per channel | 500 |
| Audio : functions | limiter |
| Connections : input | 3 pin XLR, IEC |
| Connections : output | 3 pin XLR, speakon |
| Brand | JB SYSTEMS |
| EANCode | 5420025602419 |
Manual & Downloads
Manual & Downloads
 AVM Manual Size: (2.86 MB) |
AVM Manual EN / FR / NL / DE / ES / PT |
| AVM-2 PDF leaflet Deutsch Size: (876.47 KB) |
PDF_LEAFLET_AVM-2_B00241_de.pdf |
| AVM-2 PDF leaflet English Size: (876.39 KB) |
PDF_LEAFLET_AVM-2_B00241_en.pdf |
| AVM-2 PDF leaflet Français Size: (877.79 KB) |
PDF_LEAFLET_AVM-2_B00241_fr.pdf |
| AVM-2 PDF leaflet Nederlands Size: (876 KB) |
PDF_LEAFLET_AVM-2_B00241_nl.pdf |
Reviews & References
Customer Reviews (2)
- Can you use the AVM-2 to power a subwoofer?Review by Chris
-
[Question]
Can it be used to power a Subwoofer? Or how low does it go, or is it meant for higher notes ?
[Answer]
As written on the productpage :
- You can use to power subwoofers
- There is a 90-250Hz adjustable hi-cut filter for use in active subwoofers.
- The frequency range is 20-20000 Hz
- It is even an official option for our VIBE15-SUB Mk2 subwoofer.
(Posted on 8/4/2020) - Q precio tiene el módulo amplificado avm 2Review by Christian
-
Q precio tiene el módulo amplificado avm2
[Translation]
Where I can find princing information for the AVM-2 ?
[Answer]
Please consult your local dealer.
You can find a dealer on our dealer list : https://jb-systems.eu/dealers/ (Posted on 1/14/2018)
