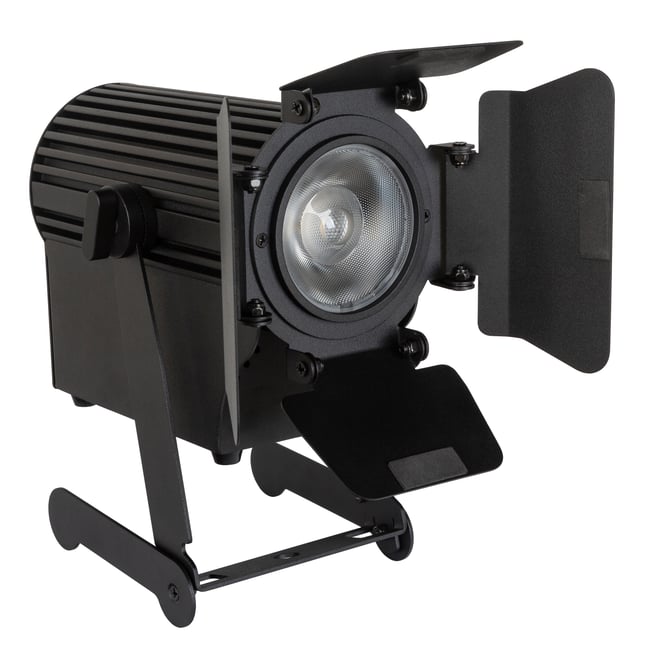

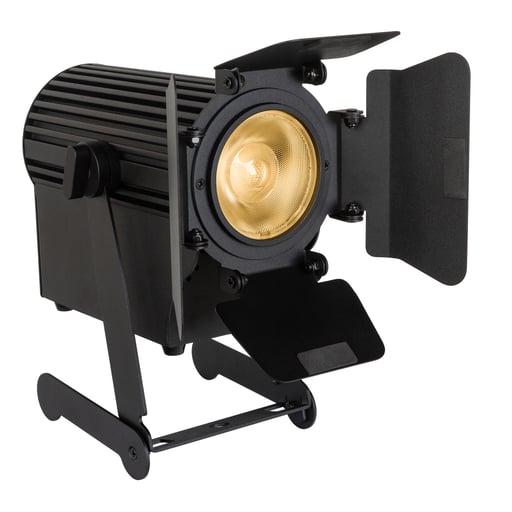

- Stylish, compact and budget friendly LED theater spot with tunable white color.

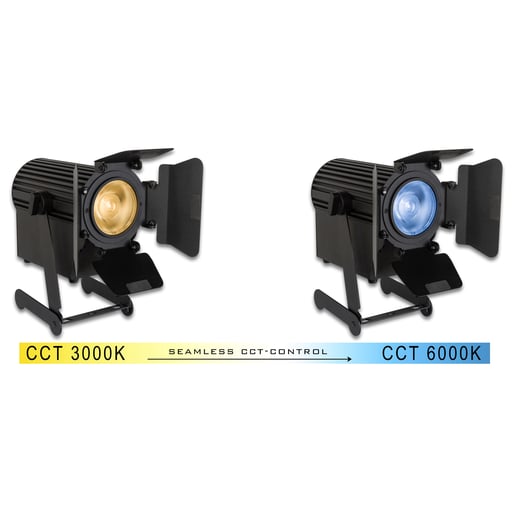

- 30watt LED, tunable white between 3000K and 6000K.
- CRI >90

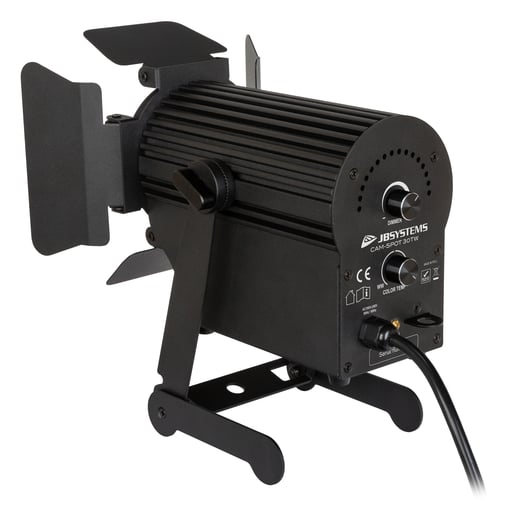

- NO DMX inside: dimmer and color temperature controllable with 2 knobs on the back.
- Beam angle = 30°
- Magnetic filter frame for color filters and four-leaf barndoor included.

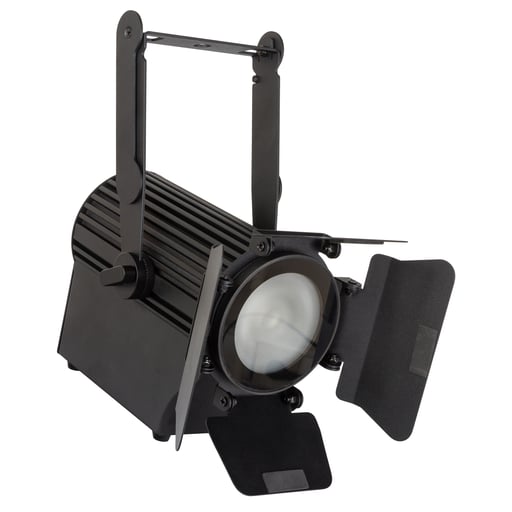

- Special bracket that can be used for hanging and as floor stand.
- Completely silent operation, no noisy cooling fans on board.
- Fixed mains power cord with standard mains plug (CEE 7/7) on the back panel.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 19.12 x 13.3 x 26.1 |
|---|---|
| General : Weight (kg) | 2.46 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 35 |
| General : Color | black |
| General : Display | none |
| General : Fixation | M10 |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, manual |
| Control : programmable | No |
| Control : upgradable software | No |
| Light : lamp socket | No |
| Light : lamp | COB |
| Light : min. color temperature (K) | 3000 |
| Light : max. color temperature (K) | 6000 |
| Light : CRI | 90 |
| Light : colors | Cold white, Warm white |
| Light : mix colors | No |
| Light : min. beam angle (°) | 30 |
| Light : max. beam angle (°) | 30 |
| Light : max. refresh rate (kHz) | No |
| Connections : input | Schuko CEE 7/7 |
| Brand | JB SYSTEMS |
| EANCode | 5420025660396 |
Manual & Downloads
Manual & Downloads
 CAM-SPOT 30TW - Manual EN Size: (874.28 KB) |
CAM-SPOT 30TW - User Manual English |
| CAM-SPOT 30TW - Manual NL Size: (872.49 KB) |
CAM-SPOT 30TW - Handleiding Nederlands |
| CAM-SPOT 30TW - Manual FR Size: (912.03 KB) |
CAM-SPOT 30TW - Mode d'emploi Français |
| CAM-SPOT 30TW - Manual DE Size: (819 KB) |
CAM-SPOT 30TW - Bedienungsanleitung Deutsch |
| CAM-SPOT 30TW - Manual ES Size: (872.09 KB) |
CAM-SPOT 30TW - Manual de instrucciones Español |
| CAM-SPOT 30TW - EC Declaration Size: (451.76 KB) |
CAM-SPOT 30TW - EC Declaration of Conformity |
| CAM-SPOT_30TW PDF leaflet Deutsch Size: (1.26 MB) |
PDF_LEAFLET_CAM-SPOT_30TW_B06039_de.pdf |
| CAM-SPOT_30TW PDF leaflet English Size: (1.26 MB) |
PDF_LEAFLET_CAM-SPOT_30TW_B06039_en.pdf |
| CAM-SPOT_30TW PDF leaflet Français Size: (1.26 MB) |
PDF_LEAFLET_CAM-SPOT_30TW_B06039_fr.pdf |
| CAM-SPOT_30TW PDF leaflet Nederlands Size: (1.26 MB) |
PDF_LEAFLET_CAM-SPOT_30TW_B06039_nl.pdf |
