Details
Details

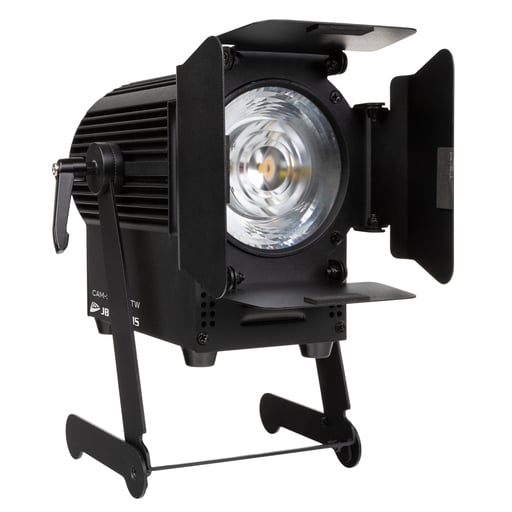

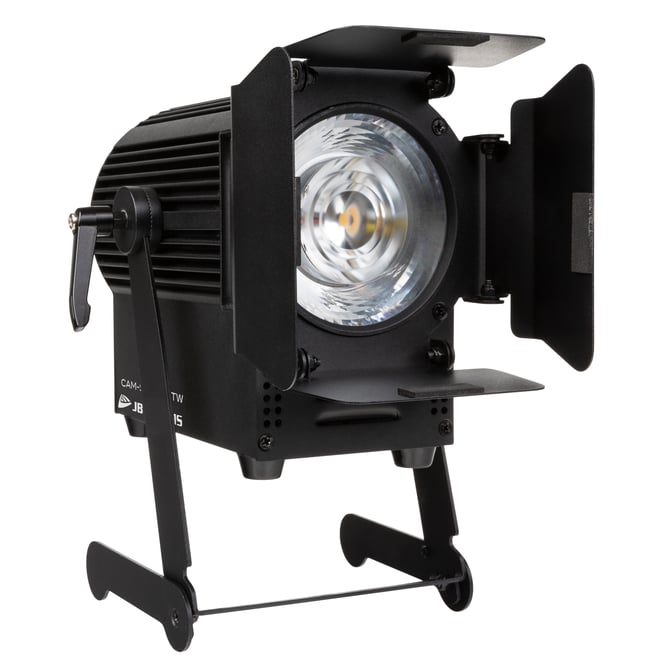

- Stylish, compact and budget friendly LED theater spot with tunable white color.
- Can be used for all kinds of applications:
- Accent lighting in living room, store, bar, etc.
- Lighting for small theaters, buffets, ...
- Video streaming, ...

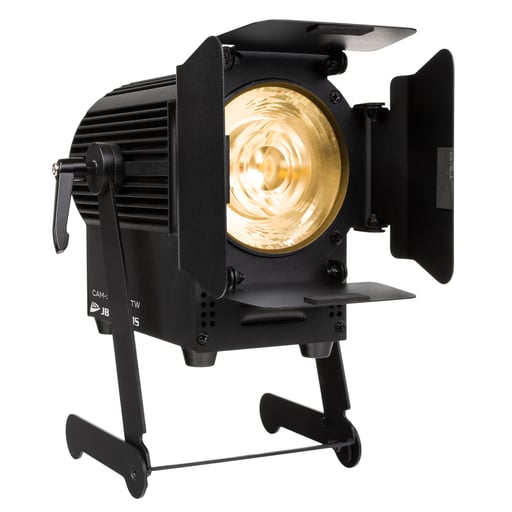

- 50watt LED, tunable white between 2800K and 5600K.
- Excellent CRI >90 for realistic color perception.

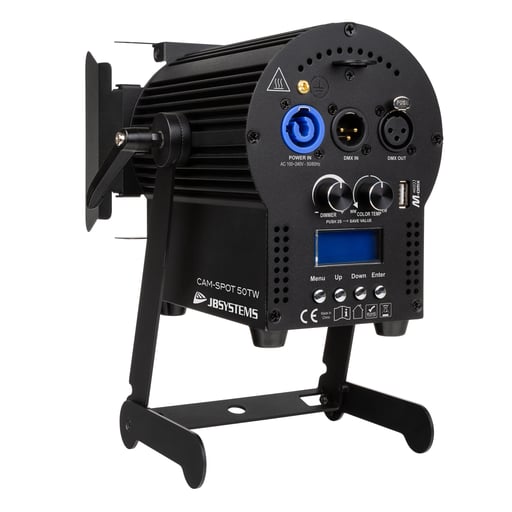

- Dimmer and color temperature controllable using 2 knobs on the back panel.
- Full DMX control with different modes: 2, 3, 4 channels.

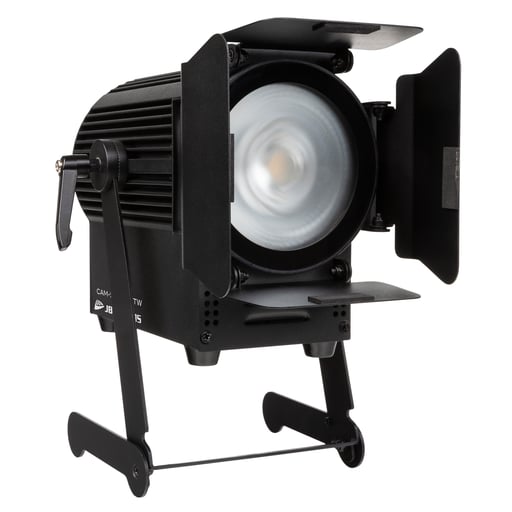

- Standard beam angle = 14° (22° with the included frost filter).
- Magnetic filter frame for color filters and 4-leaf barndoor included.
- The special suspension bracket can also be used as a table stand.
- Completely silent operation, no noisy cooling fans on board.
- PowerCon® compatible powerinlet.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 19.6 x 28.9 x 19.9 |
|---|---|
| General : Weight (kg) | 2.7 |
| General : Powerinput | AC 230V, 50Hz |
| General : Energy Label | No |
| General : Power consumption W | 52 |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, manual, DMX |
| Control : Protocol | DMX, Wireless DMX |
| Control : programmable | Yes |
| Control : upgradable software | No |
| Control : minimum DMX channels | 2 |
| Control : maximum DMX channels | 4 |
| Light : lamp socket | No |
| Light : Lux | 1406 (@5m beam 22°) |
| Light : lamp | LED |
| Light : min. color temperature (K) | 2800 |
| Light : max. color temperature (K) | 5600 |
| Light : CRI | 90 |
| Light : colors | Cold white, Warm white |
| Light : mix colors | Yes |
| Light : min. beam angle (°) | 14 |
| Light : max. beam angle (°) | 22 |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, wireless DMX optional, PowerCon® or compatible |
| Connections : output | 3 pin XLR |
| Brand | JB SYSTEMS |
| EANCode | 5420025660488 |
Manual & Downloads
Manual & Downloads
 CAM-SPOT 50TW - Manual NL Size: (2.4 MB) |
CAM-SPOT 50TW - Handleiding Nederlands |
| CAM-SPOT 50TW - Manual FR Size: (2.45 MB) |
CAM-SPOT 50TW - Mode d'emploi Français |
| CAM-SPOT 50TW - Manual DE Size: (2.4 MB) |
CAM-SPOT 50TW - Bedienungsanleitung Deutsch |
| CAM-SPOT 50TW - Manual ES Size: (2.4 MB) |
CAM-SPOT 50TW - Manual de instrucciones Español |
| CAM-SPOT 50TW - Manual EN Size: (2.44 MB) |
CAM-SPOT 50TW - User Manual English |
| CAM-SPOT 50TW - EC Declaration Size: (451.69 KB) |
CAM-SPOT 50TW - EC Declaration of Conformity |
| CAM-SPOT_50TW PDF leaflet Deutsch Size: (1.09 MB) |
PDF_LEAFLET_CAM-SPOT_50TW_B06048_de.pdf |
| CAM-SPOT_50TW PDF leaflet English Size: (1.09 MB) |
PDF_LEAFLET_CAM-SPOT_50TW_B06048_en.pdf |
| CAM-SPOT_50TW PDF leaflet Français Size: (1.09 MB) |
PDF_LEAFLET_CAM-SPOT_50TW_B06048_fr.pdf |
| CAM-SPOT_50TW PDF leaflet Nederlands Size: (1.08 MB) |
PDF_LEAFLET_CAM-SPOT_50TW_B06048_nl.pdf |
