COB-4BAR

Details

Stylish and compact powered 4BAR containing 4 energy saving COB LED-projectors
NO separate LEDs: each projector contains a 36W COB LED with perfect color mixing and the look of a traditional lamp !
Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (optional)
Exceptional high light output (exceeding the output of traditional PAR56 300W lamps !)
IR-remote controller included: no difficult controllers needed, perfect for DJs !
Equipped with 2 mains IEC-outputs, each with remote on/off control: any (LED) effect up to 500W can be connected !
Different working modes:
- Standalone with IR-remote: automatic / beat synchronized color shows + on/off control of 2 (optional) effect lights
- Master/slave mode: several bars can be used together for wonderful preprogrammed, music synchronized lightshows.
- Controlled by our famous LEDCON-02 Mk2 or the optional “COB-4BAR FOOTCONTROL” remote.
- DMX-controlled: different channel modes with program selection and individual RGB control.
LED-Projector beam angles = 15° with lens & 100° without lens
Perfect for mobile applications: only 1m long and weighs only 8kg !
Many applications possible: Discotheques, DJs, rental companies, ...
0-100% dimming and ultra-fast strobe function (no additional strobes needed!)
Excellent built-in programs for wonderful, ever changing, light shows!
Optional foot controller available: perfect for small music bands!
Backlit alphanumeric 2x 16character LCD-display for easy menu navigation.
Standard 35mm pole adapter included.

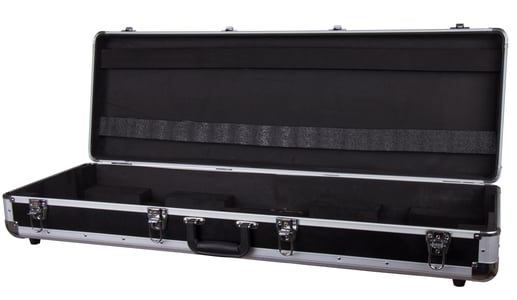

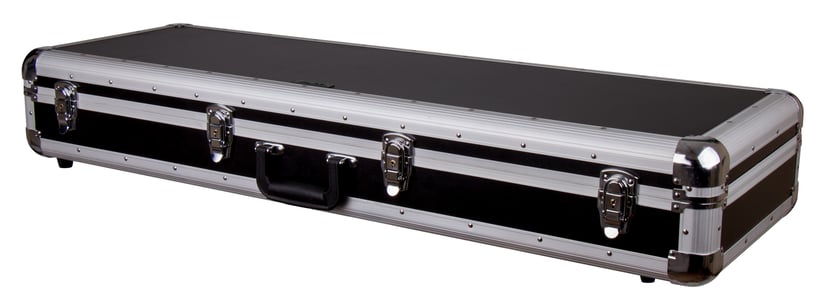

A light but strong case for easy transport is included with the 4BAR.

Technical Specifications

General : Application	DJ & Club, Stage & Rental
General : Series	N/A
General : Dimensions (cm)	100 x 8.2 x 32 cm
General : Weight (kg)	11
General : Powerinput	AC 100 - 240V, 50/60Hz
General : Energy Label	No
General : Power consumption W	120
General : Color	black
General : Display	LCD
General : Fixation	35mm stand adaptor
General : IP rating	indoor
Control : manual	No
Control : Master/Slave	Yes
Control : SMART-DMX	No
Control : Standalone	automatic, sound
Control : Type included remote	IR-remote
Control : programmable	No
Control : upgradable software	No
Control : maximum DMX channels	18
Light : lamp socket	No
Light : lamp	COB
Light : colors	Red, Green, Blue, White
Light : mix colors	Yes
Light : min. beam angle (°)	15
Light : max. beam angle (°)	100
Light : min. refresh rate (kHz)	1.2
Light : max. refresh rate (kHz)	1.2
Connections : output	3 pin XLR, IEC
Brand	JB SYSTEMS
EANCode	5420025649520

Manual & Downloads

COB-4BAR Manual V3.0 EN Size: (2.2 MB)	COB-4BAR Manual V3.0 English (for Briteq “WTR-DMX DONGLE”)
COB-4BAR Manual V3.0 NL Size: (1.98 MB)	COB-4BAR Manual V3.0 Nederlands (voor Briteq “WTR-DMX DONGLE”)
COB-4BAR Manual V3.0 FR Size: (1.97 MB)	COB-4BAR Manual V3.0 Français (pour Briteq “WTR-DMX DONGLE”)
COB-4BAR Manual V3.0 DE Size: (2.14 MB)	COB-4BAR Manual V3.0 Deutsch (für Briteq “WTR-DMX DONGLE”)
COB-4BAR Manual V3.0 ES Size: (2.05 MB)	COB-4BAR Manual V3.0 Español (para Briteq “WTR-DMX DONGLE”)
COB-4BAR Manual V1.0 Size: (4.52 MB)	COB-4BAR Manual V1.0 EN / FR / NL / DE / ES
COB-4BAR + FOOTCONTROL EC Declaration Size: (638.29 KB)	COB-4BAR + FOOTCONTROL EC Declaration of Conformity
COB-4BAR - Firmware v1.08 Size: (666.2 KB)	COB-4BAR - Firmware v1.08 (2017-12-18)
COB-4BAR - Firmware v1.06 Size: (482.86 KB)	COB-4BAR - Firmware v1.06 (2016-08-08)
COB-4BAR - Firmware v1.07 Size: (648.38 KB)	COB-4BAR - Firmware v1.07 (2017-03-23)
COB-4BAR - Firmware v1.09 Size: (77.42 KB)	COB-4BAR - Firmware v1.09 (2018-01-29)
COB-4BAR Chromateq fixture files Size: (936 Bytes)	COB-4BAR Chromateq fixture files
COB-4BAR PDF leaflet Deutsch Size: (1.62 MB)	PDF_LEAFLET_COB-4BAR_04952_de.pdf
COB-4BAR PDF leaflet English Size: (1.62 MB)	PDF_LEAFLET_COB-4BAR_04952_en.pdf
COB-4BAR PDF leaflet Français Size: (1.62 MB)	PDF_LEAFLET_COB-4BAR_04952_fr.pdf
COB-4BAR PDF leaflet Nederlands Size: (1.62 MB)	PDF_LEAFLET_COB-4BAR_04952_nl.pdf
