Details
Details

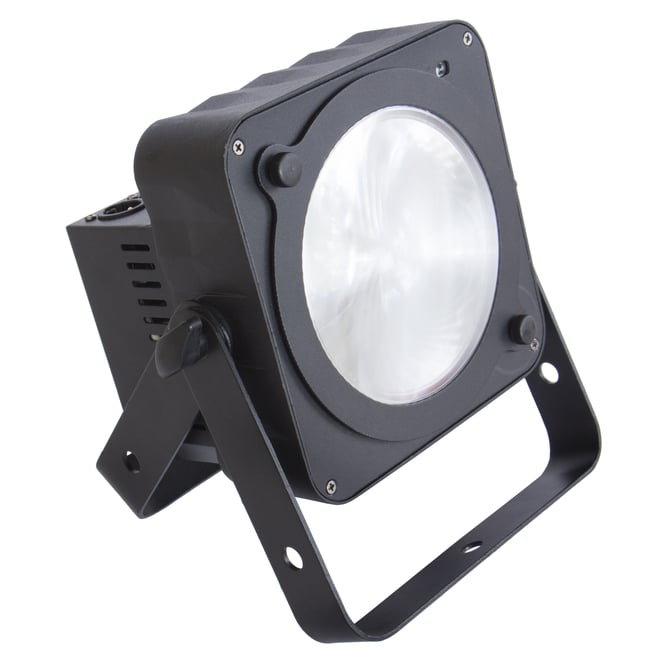

- Extremely compact energy saving COB LED-projector !
- NO separate LEDs: equipped with a 36W COB LED assuring perfect color mixing and the look of a traditional lamp !

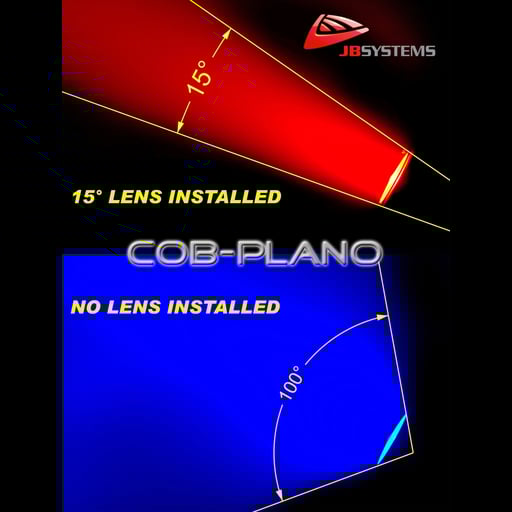

- Two different beam angles: 100° wide angle or 15° while using the supplied lens.
- IR-remote controller included: no difficult controllers needed, perfect for DJ’s !
- Different working modes:
- Standalone with IR-remote: automatic / beat synchronized color patterns.
- Master/slave mode: several projectors can be used together for wonderful preprogrammed, music synchronized lightshows.
- DMX-controlled: different channel modes with program selection and individual RGB control.
- Can be used with LEDCON-02 Mk2 easy controller!
- Remote addressing can be done using the IR-remote !
- Perfect for mobile applications: extremely small and very low
- Many applications possible: Discotheques, DJs, rental companies, ...
- 0-100% dimming and ultra-fast strobe function (no additional strobes needed!)
- 4digit LED-display for easy menu navigation
- Double bracket: easy for use as floor spot !
- Can even be installed inside QUATTRO 290 ALU-truss AFTER the truss is installed !
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 20.2 x 12 x 22.4 cm |
|---|---|
| General : Weight (kg) | 2.14 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 40 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | standalone sound, standalone automatic, remote, DMX, Master/Slave |
| Control : Protocol | DMX |
| Control : Type included remote | IR-2 remote |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 3 |
| Control : maximum DMX channels | 6 |
| Light : lamp socket | No |
| Light : lamp | COB |
| Light : colors | RGB |
| Light : mix colors | Yes |
| Light : min. beam angle (°) | 15 |
| Light : max. beam angle (°) | 100 |
| Light : max. refresh rate (kHz) | 3.6 |

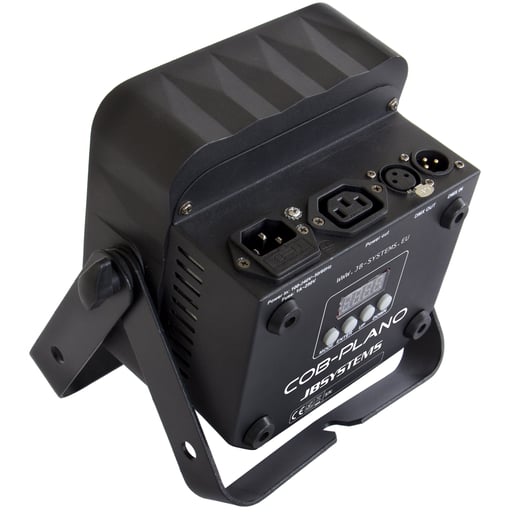

| Connections : input | 3 pin XLR, IEC |
| Connections : output | 3 pin XLR, IEC |
| Brand | JB SYSTEMS |
| EANCode | 5420025649513 |
Manual & Downloads
Manual & Downloads
 COB-PLANO Manual v1.1 Size: (2.14 MB) |
COB-PLANO Manual v1.1 EN / FR / NL / DE / ES / PT |
| COB-PLANO Manual v2.0 NL Size: (1.1 MB) |
COB-PLANO Manual v2.0 Nederlands |
| COB-PLANO Manual v2.0 EN Size: (1.2 MB) |
COB-PLANO Manual v2.0 English |
| COB-PLANO Manual v2.0 FR Size: (1.11 MB) |
COB-PLANO Manual v2.0 Français |
| COB-PLANO EC Declaration Size: (634.95 KB) |
COB-PLANO EC Declaration of Conformity |
 COB-PLANO Chromateq fixture files Size: (1.45 KB) |
COB-PLANO Chromateq fixture files |
| COB-PLANO Firmware V1.09 Size: (200.13 KB) |
COB-PLANO Firmware V1.09 (2021-12-02) |
| COB-PLANO PDF leaflet Deutsch Size: (582.49 KB) |
PDF_LEAFLET_COB-PLANO_04951_de.pdf |
| COB-PLANO PDF leaflet English Size: (581.27 KB) |
PDF_LEAFLET_COB-PLANO_04951_en.pdf |
| COB-PLANO PDF leaflet Français Size: (583.78 KB) |
PDF_LEAFLET_COB-PLANO_04951_fr.pdf |
| COB-PLANO PDF leaflet Nederlands Size: (581.87 KB) |
PDF_LEAFLET_COB-PLANO_04951_nl.pdf |
