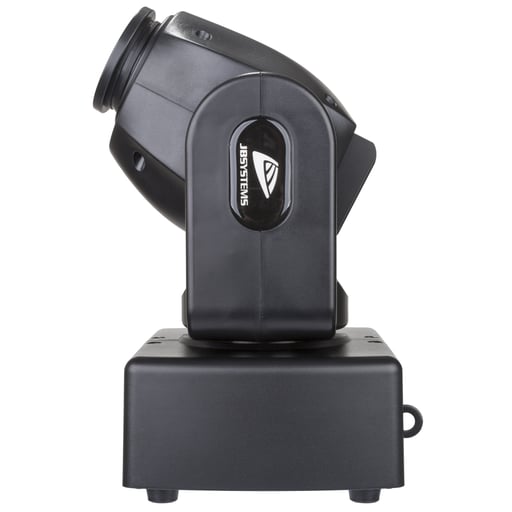

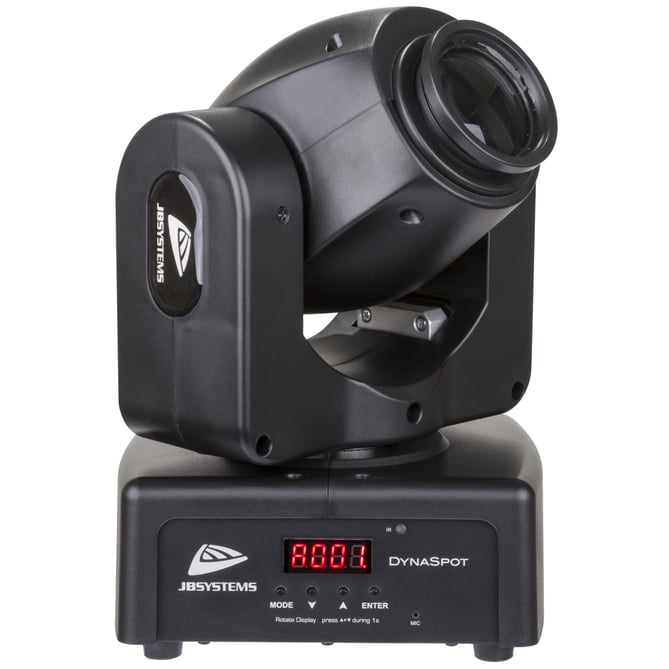

DYNASPOT

An extremely compact but very bright LED moving spot with 12° beam
SKU: 04053
EANCODE: 5420025640534

Details

Details

  • An extremely compact but very bright LED moving spot with 12° beam
  • Specially designed for DJs and smaller clubs.
  • Based on the very latest 10WATT LED technology from CREE!
  • Very low power consumption, only 37 W (money saving!)
  • 0-100% dimming and different strobe effects
  • Separate gobo wheel with 6 fixed gobos + open
  • Separate color wheel with 8 colors
  • Excellent built-in programs for wonderful, ever changing, light shows.

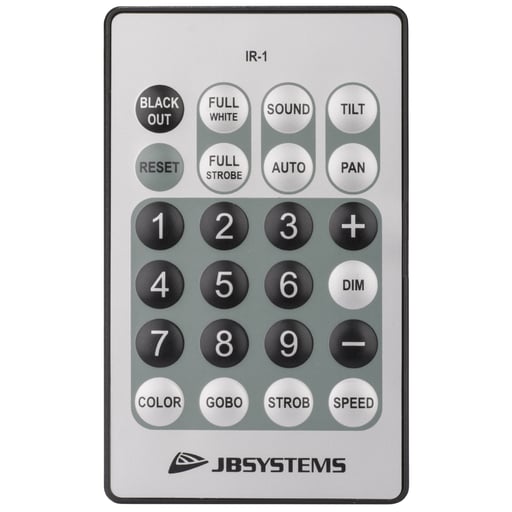

  • IR-remote included for standalone and master/slave mode, no DMX-controller needed.
  • Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (optional)
  • Multiple working modes:
    • DMX-control: via 5, 8 or 10 channels
    • Standalone: sound activated with internal mic
    • Master/slave: wonderful synchronized shows in standalone mode
    • DMX-master/slave: several units can work in audio synchronized master/slave, while the user only needs 5 DMX-channels to keep full control over colors, gobos, strobe, dimming and pan/tilt speed.
  • Three different default settings, easy for rental companies:
    • PRO-defaults: basic settings for use on DMX-controllers.
    • AUTO-defaults: basic settings for easy master/slave use.
    • USER-defaults: save and recall your own preferred settings!
  • Easy software updates via special software upgrade unit

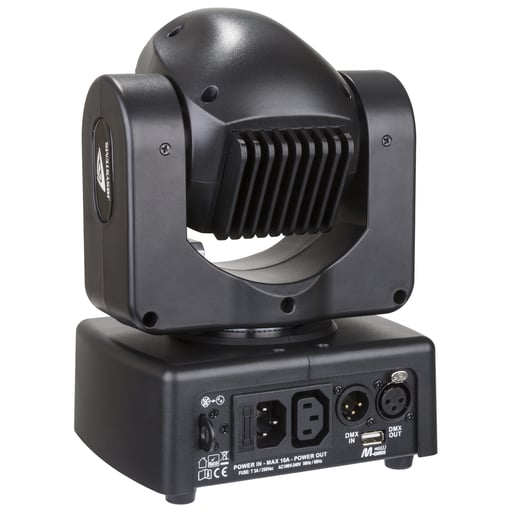

  • IEC mains in/outputs: easy daisy chaining of several units, up to 10A.
  • 5V/350mA USB-output

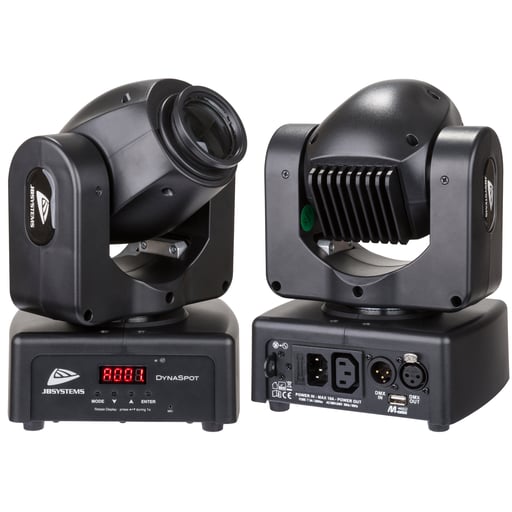

  • 4-digit LED-display for easy menu navigation

Specifications

Specifications

General : Application DJ & Club, Stage & Rental
General : Dimensions (cm) 17 x 17 x 20 cm
General : Weight (kg) 2.96
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Power consumption W 37
General : Color black
General : Display LED
General : IP rating indoor
Control : manual No
Control : Master/Slave Yes
Control : DMX M/S No
Control : Standalone sound
Control : Type included remote IR-remote
Control : programmable No
Control : upgradable software No
Control : maximum DMX channels 10
Light : lamp socket none
Light : lamp LED
Light : colors Red, Green, Blue, White, other
Light : mix colors No
Light : fixed gobos 6
Light : focus None
Light : zoom None
Light : iris No
Light : frost filter No

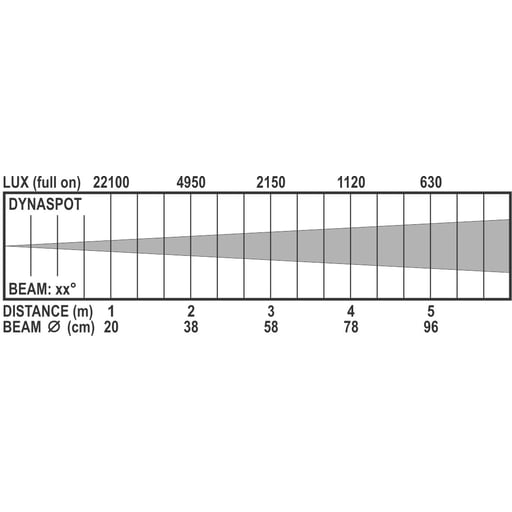

Light : min. beam angle (°) 12
Light : max. beam angle (°) 12
Light : min. refresh rate (kHz) No
Light : max. refresh rate (kHz) No
Brand JB SYSTEMS
EANCode 5420025640534
Discontinued No

Downloads

Downloads

View FileDYNASPOT Manual V1.0    Size: (3.1 MB) DYNASPOT User Manual V1.0 (EN/FR/NL/DE/ES)
View FileDYNASPOT Manual V2.0 with M-DMX    Size: (3.81 MB) DYNASPOT User Manual V2.0 with M-DMX (EN/FR/NL/DE/ES)
View FileDYNASPOT EC Declaration    Size: (636.2 KB) DYNASPOT EC Declaration of Conformity
View FileDYNASPOT Chromateq fixture files    Size: (3.41 KB) DYNASPOT Chromateq fixture files
View FileDYNASPOT Software Update    Size: (606.94 KB) DYNASPOT Software Update
View FileDYNASPOT PDF leaflet Deutsch    Size: (758.67 KB) PDF_LEAFLET_DYNASPOT_04053_de.pdf
View FileDYNASPOT PDF leaflet English    Size: (757.78 KB) PDF_LEAFLET_DYNASPOT_04053_en.pdf
View FileDYNASPOT PDF leaflet Français    Size: (760.36 KB) PDF_LEAFLET_DYNASPOT_04053_fr.pdf
View FileDYNASPOT PDF leaflet Nederlands    Size: (758.41 KB) PDF_LEAFLET_DYNASPOT_04053_nl.pdf
