Details
Details

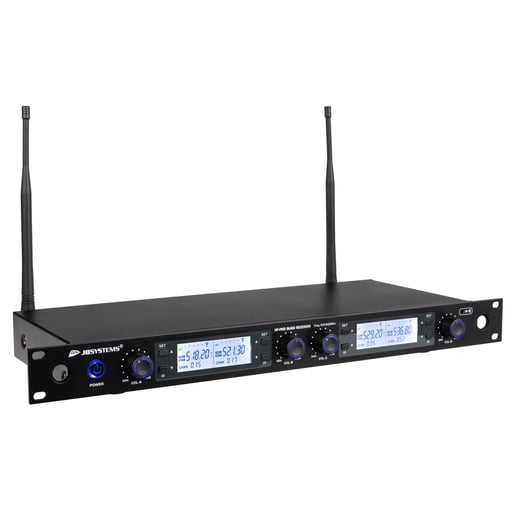

- 4 separate PLL/UHF wireless microphone receivers in one 19" / 1U Rack housing!
- Any combination of up to 4 of the optional transmitters below can be used:

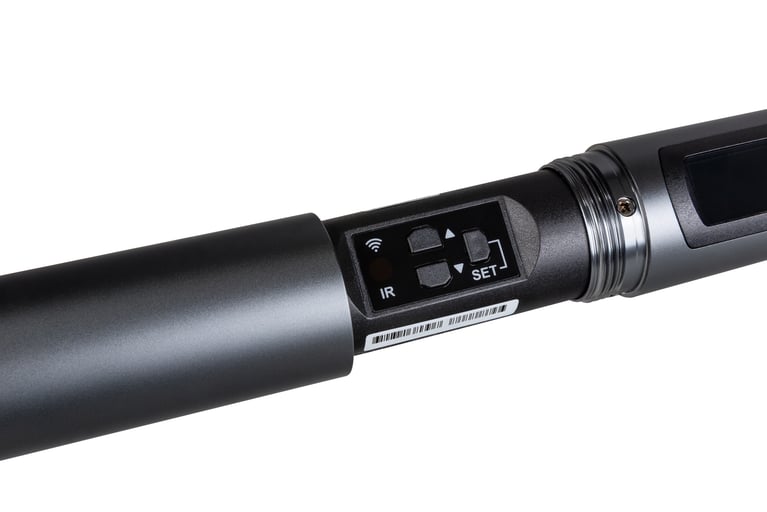

- HF-PRO MIC: full metal hand microphone with superior sound quality

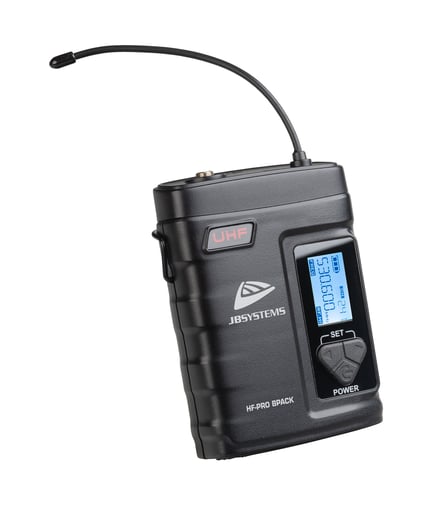

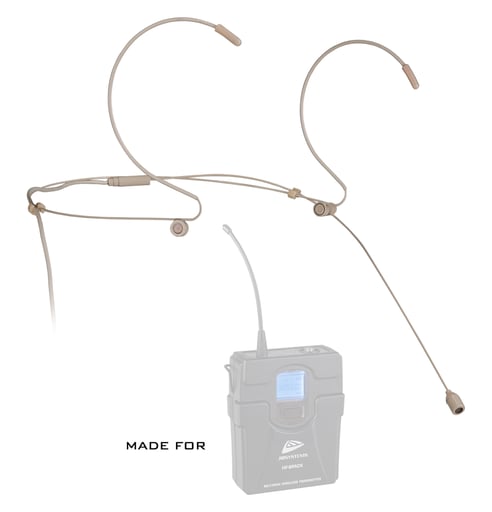

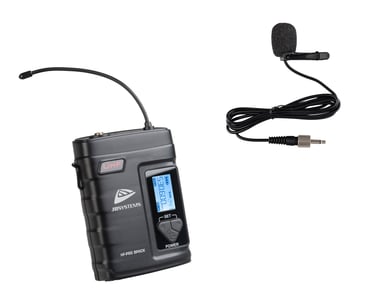

- HF-PRO BPACK: HQ belt-pack with included lavalier mic (or optional headset)
- 2 LCD displays with microphone battery indicator for easy setup!

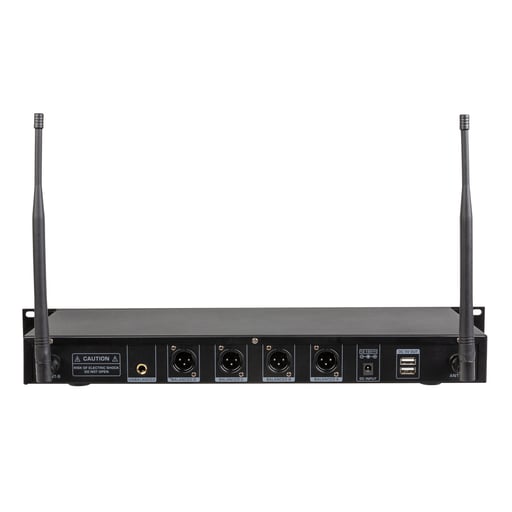

- 4 separate bal. XLR-outputs with gain control
- 1 unbalanced mixed 6.3mm jack output
- 4x 100 Frequencies with IR-SYNC technology: easy plug & play!
- 2 USB-5V outputs: can be used to charge optional AA-accus
- 12Vdc input:
- Included 12Vdc Adapter
- Use in a CAR PA-system on 12V ACCU
- Easy 19"-installation with antennas on front or back panel.
- Freq. range: 514→542MHz (4G compatible) (free use in: BEL, NL, FR, LUX, BUL, SWISS * other: license required)
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48 (41) x 18 x 4.5 |
|---|---|
| General : Weight (kg) | 1.7 |
| General : Powerinput | 12Vdc |
| General : Energy Label | No |
| General : Color | black |
| Audio : microphone direction | No |
| Connections : output | 3 pin XLR, jack |
| Brand | JB SYSTEMS |
| EANCode | 5420025683180 |
Manual & Downloads
Manual & Downloads
 HF-PRO QUAD RECEIVER - Manual EN Size: (2.51 MB) |
HF-PRO QUAD RECEIVER - Manual English |
| HF-PRO QUAD RECEIVER - Manual FR Size: (2.82 MB) |
HF-PRO QUAD RECEIVER - Manual Français |
| HF-PRO QUAD RECEIVER - Manual NL Size: (2.79 MB) |
HF-PRO QUAD RECEIVER - Manual Nederlands |
| HF-PRO QUAD RECEIVER - Manual DE Size: (2.79 MB) |
HF-PRO QUAD RECEIVER - Manual Deutsch |
| HF-PRO QUAD RECEIVER - Manual ES Size: (2.81 MB) |
HF-PRO QUAD RECEIVER - Manual Español |
| HF-PRO_QUAD_REC PDF leaflet Deutsch Size: (899.08 KB) |
PDF_LEAFLET_HF-PRO_QUAD_REC_B08318_de.pdf |
| HF-PRO_QUAD_REC PDF leaflet English Size: (898.7 KB) |
PDF_LEAFLET_HF-PRO_QUAD_REC_B08318_en.pdf |
| HF-PRO_QUAD_REC PDF leaflet Français Size: (895.06 KB) |
PDF_LEAFLET_HF-PRO_QUAD_REC_B08318_fr.pdf |
| HF-PRO_QUAD_REC PDF leaflet Nederlands Size: (896.06 KB) |
PDF_LEAFLET_HF-PRO_QUAD_REC_B08318_nl.pdf |
