Details
Details
- DUAL “TRUE DIVERSITY” WIRELESS RECEIVER
- 2 independent PLL/UHF receivers with auto switching function for very stable reception!
- Any combination of up to 2 of the optional transmitters below can be used:
- HF-PRO MIC: full metal hand microphone with superior sound quality
- HF-PRO BPACK: HQ belt-pack with included lavalier mic (or optional headset)

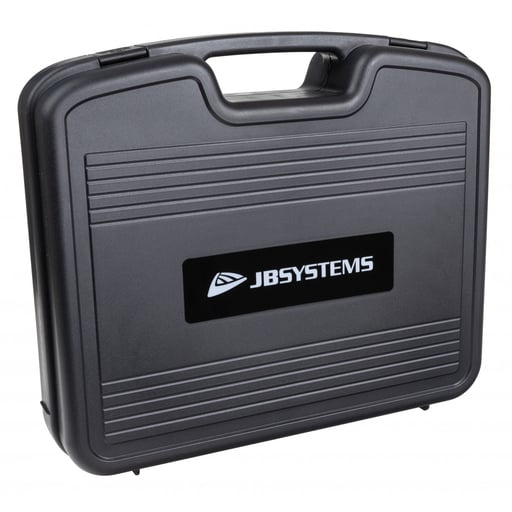

- The included plastic case also provides space for 2 optional MIC/BPACK transmitters

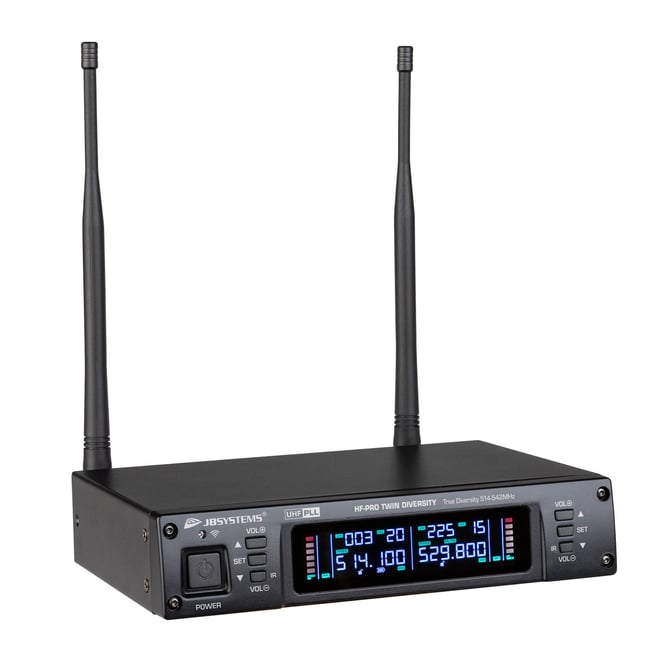

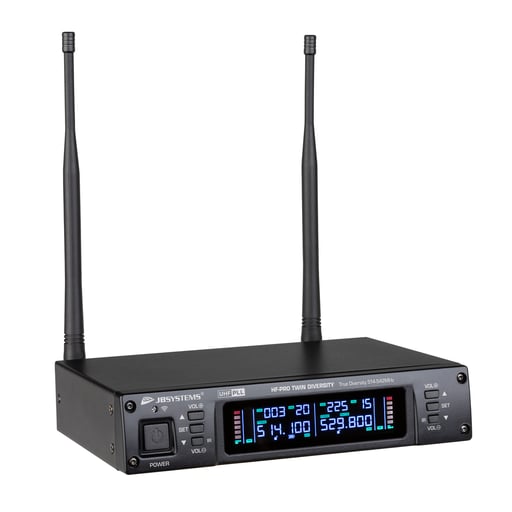

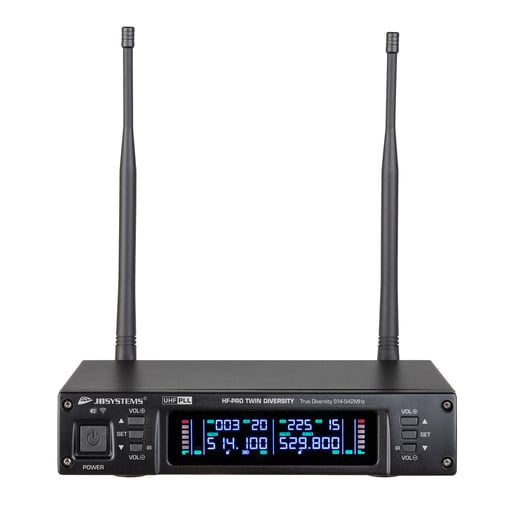

- Color display with microphone battery indicator for easy setup!

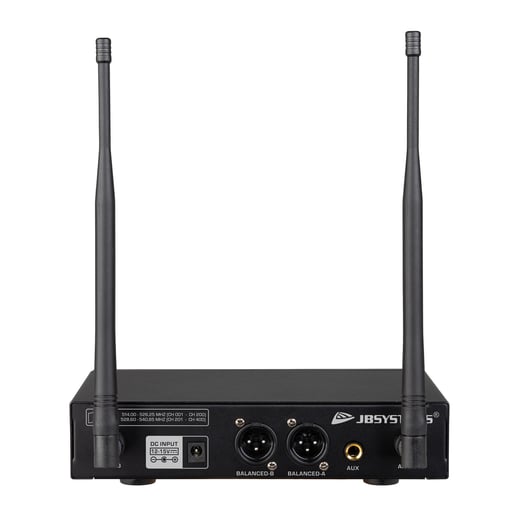

- 2 separate bal. XLR-outputs with gain control
- 1 unbalanced mixed 6.3mm jack output
- 2x 200 Frequencies with IR-SYNC technology: easy plug & play!
- 12Vdc input:
- Included 12Vdc Adapter
- Use in a CAR PA-system on 12V ACCU

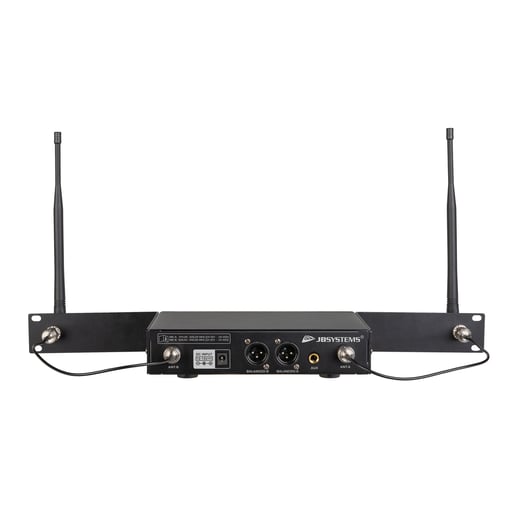

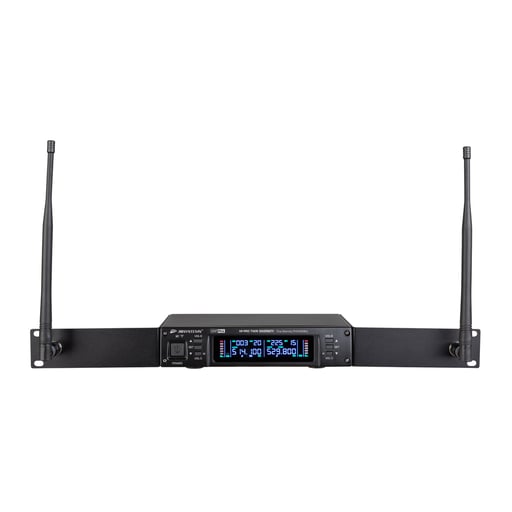

- Easy 19"-installation: 19" brackets + front antennas included!
- Freq. range: 514→542MHz (4G compatible) (free use in: BEL, NL, FR, LUX, BUL, SWISS * other: license required)
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 22 x 15 x 4.1 |
|---|---|
| General : Weight (kg) | 1.4 |
| General : Powerinput | 12Vdc |
| General : Energy Label | No |
| General : Color | black |
| Audio : microphone direction | No |
| Connections : output | 3 pin XLR, jack |
| Brand | JB SYSTEMS |
| EANCode | 5420025683197 |
Manual & Downloads
Manual & Downloads
 HF-PRO TWIN DIVERSITY - Manual EN Size: (2.58 MB) |
HF-PRO TWIN DIVERSITY - Manual English |
| HF-PRO TWIN DIVERSITY - Manual NL Size: (2.85 MB) |
HF-PRO TWIN DIVERSITY - Manual Nederlands |
| HF-PRO TWIN DIVERSITY - Manual FR Size: (2.88 MB) |
HF-PRO TWIN DIVERSITY - Manual Français |
| HF-PRO TWIN DIVERSITY - Manual ES Size: (2.88 MB) |
HF-PRO TWIN DIVERSITY - Manual Español |
| HF-PRO TWIN DIVERSITY - Manual DE Size: (2.85 MB) |
HF-PRO TWIN DIVERSITY - Manual Deutsch |
| HF-PRO_TWIN_DIV PDF leaflet Deutsch Size: (832.66 KB) |
PDF_LEAFLET_HF-PRO_TWIN_DIV_B08319_de.pdf |
| HF-PRO_TWIN_DIV PDF leaflet English Size: (833.5 KB) |
PDF_LEAFLET_HF-PRO_TWIN_DIV_B08319_en.pdf |
| HF-PRO_TWIN_DIV PDF leaflet Français Size: (830.83 KB) |
PDF_LEAFLET_HF-PRO_TWIN_DIV_B08319_fr.pdf |
| HF-PRO_TWIN_DIV PDF leaflet Nederlands Size: (831.88 KB) |
PDF_LEAFLET_HF-PRO_TWIN_DIV_B08319_nl.pdf |
