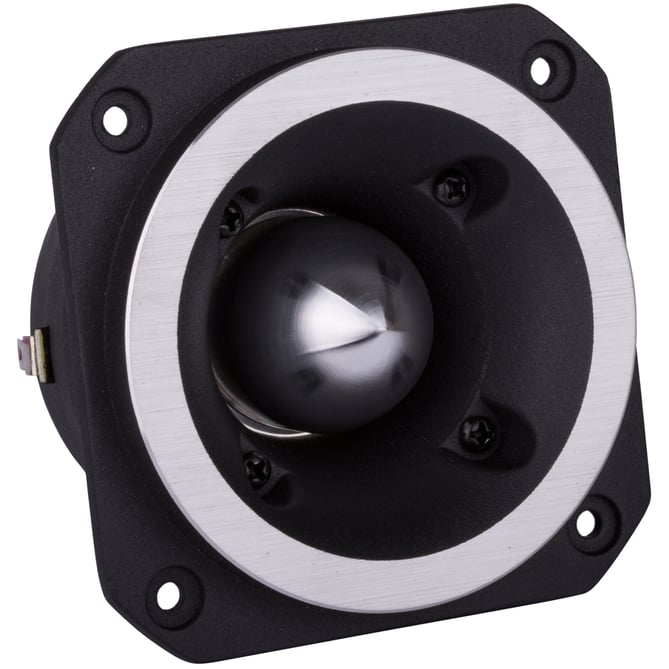

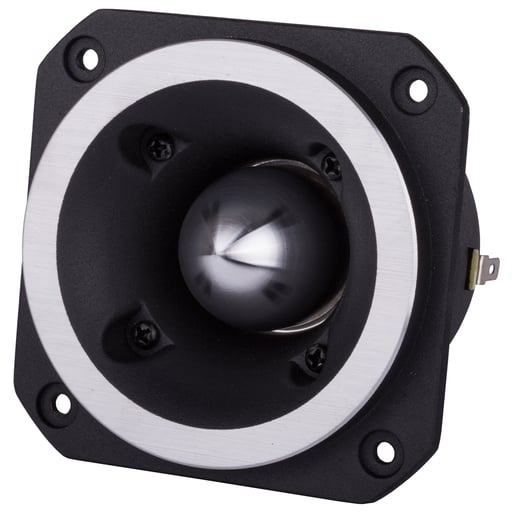

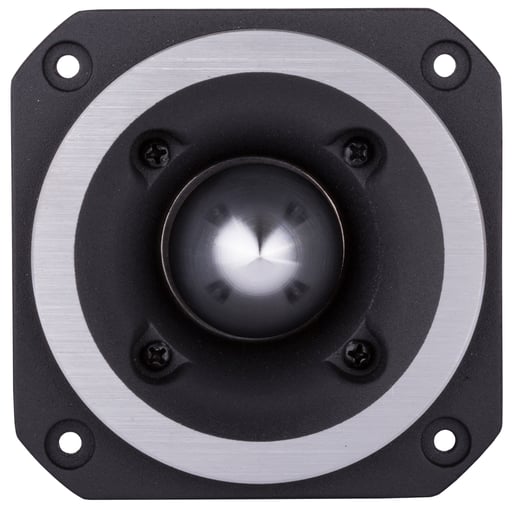

- Cost-effective professional bullet tweeter for PA/Disco speaker cabinets
- Diecast aluminum frame

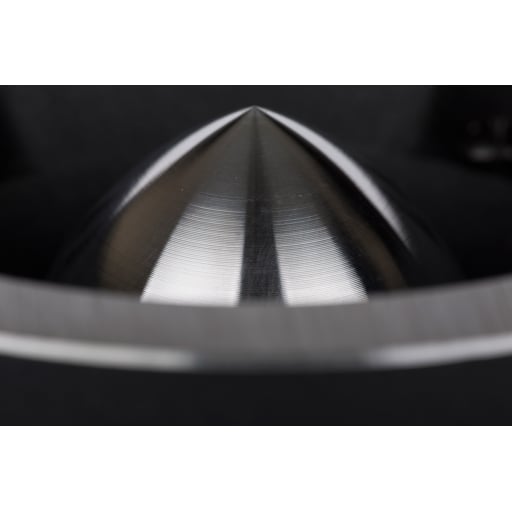

- Titanium diaphragm
- Can for example be used in a 300W system, while used with 6kHz x-over (18 dB/oct)
- Power: 40 Wrms / 80 Wmax
- Sensitivity: 100 dB
- Freq. response: 4-20 kHz
- Impedance: 8 ohm
- Dimensions: 10 x 10 x 7 cm
- Weight: 1.30 kg
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 10 x 10 x 7 cm |
|---|---|
| General : Weight (kg) | 1.3 |
| Audio : min. frequency (Hz) | 4000 |
| Audio : max. frequency (Hz) | 20000 |
| Brand | JB SYSTEMS |
| EANCode | 5420025608077 |
