Details
Details

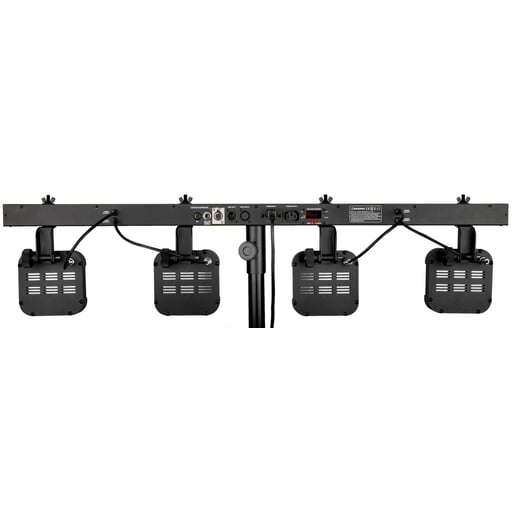

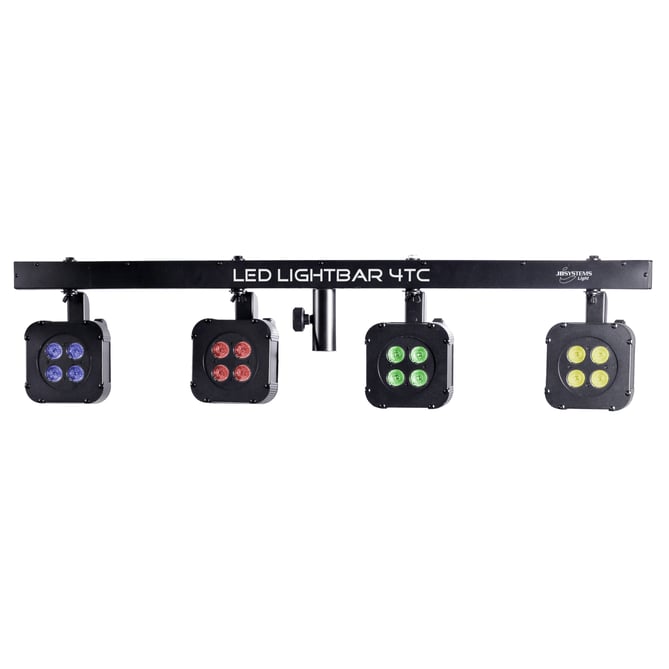

- Stylish and extremely compact powered 4BAR containing 4 ultra thin RGB LED-projectors
- Each LED-projector contains 4pcs RGB 3in1 3watt LEDs for exceptional high light output (exceeding the output of traditional PAR56 300W lamps!)
- High quality “constant current" LED technology!
- LED-Projector beam angles = 15°
- Energy saving: uses only 66W (instead of 1200W for traditional 4x PAR56-300W)
- Perfect for mobile applications: only 106cm long and weighs only 7kg!
- Many applications possible: Discotheques, DJs, hiring companies, ...
- Very smooth RGB color changes thanks to high freq. dimming electronics
- 0-100% dimming and ultra fast strobe function (no additional strobes needed!)
- Excellent built-in programs for wonderful, ever changing, light shows!
- Different working modes:
- Standalone: automatic or beat synchronized color patterns (optional CA-8 controller possible)
- Master/slave mode: up to 42 sets can be used together for wonderful preprogrammed, music synchronized lightshows.
- DMX-controlled (SMART-DMX, 1, 4, 7, 12 or 16 channel mode for maximum flexibility)
- Controlling up to 42 units is child's play using the optional LEDCON 02 remote!
- Optional CA-32F foot controller available: perfect for small music bands!
- 4-digit menu driven display to select all possible functions

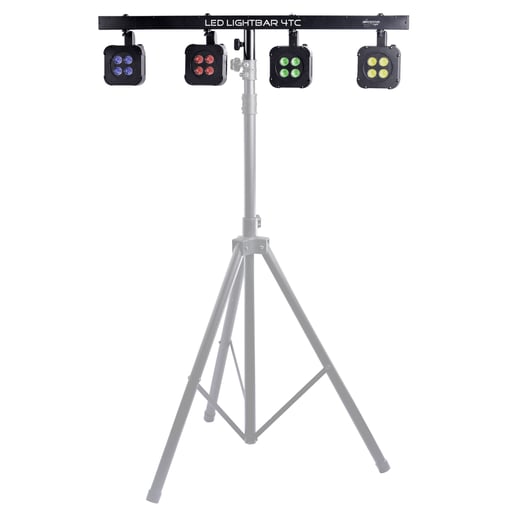

- Standard 35mm stand adapter included.
- A nice and strong flight case for easy transport is optionally available.
- 5m mains cable included.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 106 x 25.3 x 9.2 cm |
|---|---|
| General : Weight (kg) | 6.5 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 68 |
| General : Color | black |
| General : Display | LED |
| General : IP rating | indoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : optional remote | CA-8 |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 16 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue |
| Light : mix colors | No |
| Light : functions | N/A |
| Light : min. beam angle (°) | 15 |
| Light : max. beam angle (°) | 15 |
| Light : max. refresh rate (kHz) | No |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025649483 |
Manual & Downloads
Manual & Downloads
 LED LIGHTBAR 4TC Manual Size: (1.66 MB) |
| LED LIGHTBAR 4TC EC declaration Size: (413.51 KB) |
