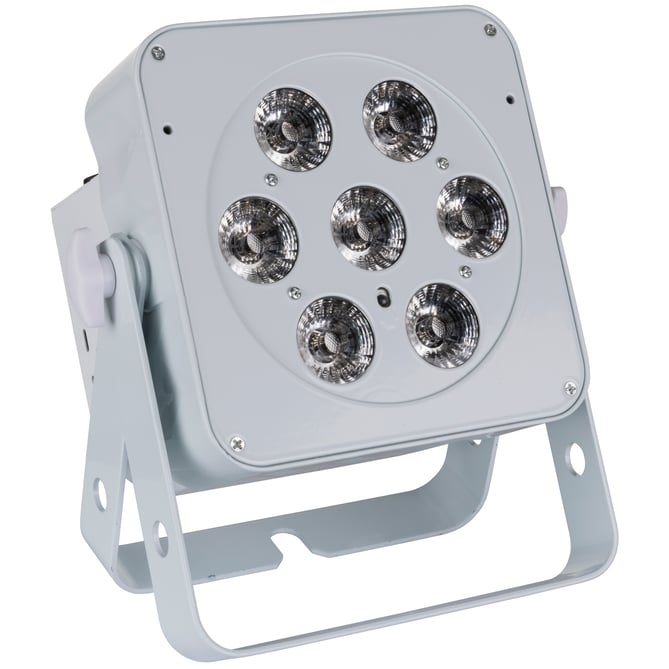

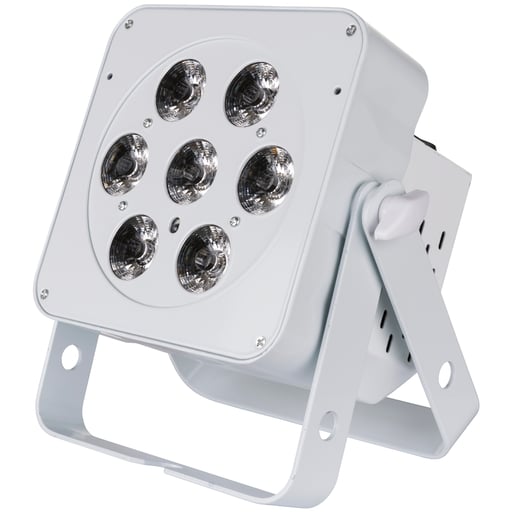

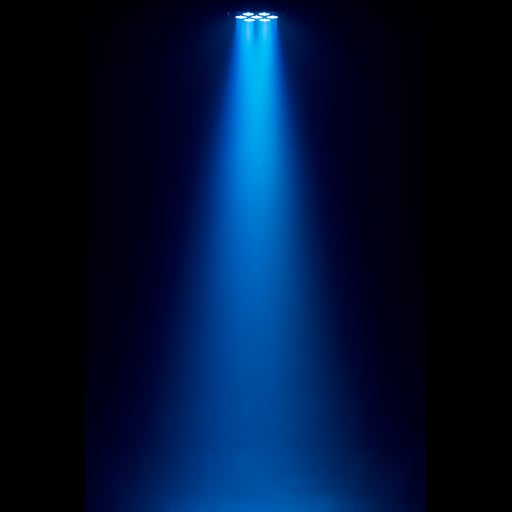

LED PLANO 7FC-WHITE

Extremely compact energy saving LED projector equipped with 7x8W RGBW LEDs
SKU: B04959
EANCODE: 5420025649599

Details

Details

  • Extremely compact energy saving LED projector !
  • Equipped with 7x 8W RGBW LEDs

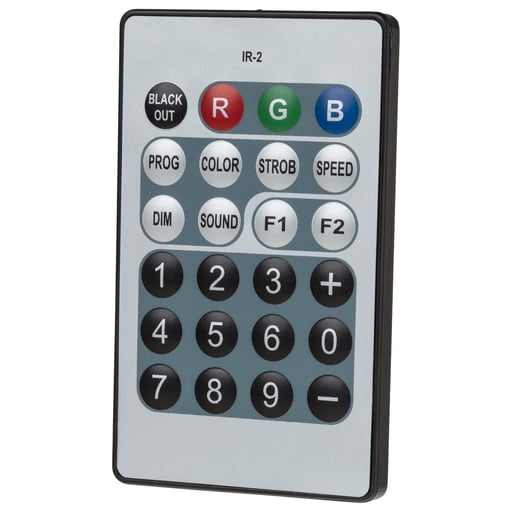

  • IR-remote controller included
  • Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq ® order code: 4645)
  • Different working modes:
    • Standalone with IR-remote: automatic / beat synchronized color patterns.
    • Master/slave mode: several projectors can be used together for wonderful preprogrammed, music synchronized lightshows.
    • DMX-controlled: different channel modes with program selection and individual RGB control.
    • Can be used with LEDCON-02 Mk2 and the LEDCON-XL controllers!
  • Perfect for mobile applications: extremely small and very low power consumption
  • Many applications possible: Discotheques, DJs, rental companies, ...
  • 0-100% dimming and ultra-fast strobe function (no additional strobes needed!)
  • 4digit LED-display for easy menu navigation
  • Double bracket: easy for use as floor spot !

Technical Specifications

Technical Specifications

General : Dimensions (cm) 21 x 12 x 22
General : Weight (kg) 2.35
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Power consumption W 38
General : Color white
General : Display LED
General : IP rating indoor
Control : Modes standalone fixed, standalone sound, standalone automatic, remote, manual, DMX, Master/Slave
Control : Protocol DMX, Wireless DMX
Control : Type included remote Wireless IR-2 Remote
Control : programmable No
Control : upgradable software Yes
Control : minimum DMX channels 2
Control : maximum DMX channels 7
Light : lamp socket No
Light : lamp LED
Light : colors RGBW
Light : mix colors No
Light : max. beam angle (°) 30
Light : max. refresh rate (kHz) 3.6

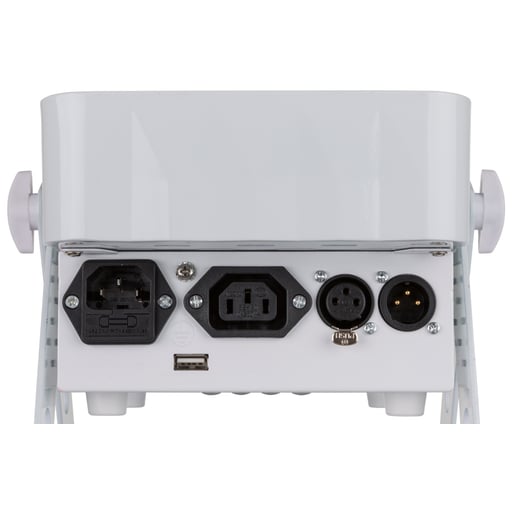

Connections : input 3 pin XLR, wireless DMX optional, IEC
Connections : output 3 pin XLR, IEC
Brand JB SYSTEMS
EANCode 5420025649599

Manual & Downloads

Manual & Downloads

View FileLED PLANO 7FC Manual EN    Size: (1.03 MB) LED PLANO 7FC Manual English
View FileLED PLANO 7FC Manual NL    Size: (993.56 KB) LED PLANO 7FC Manual Nederlands
View FileLED PLANO 7FC Manual FR    Size: (1.1 MB) LED PLANO 7FC Manual Français
View FileLED PLANO 7FC Manual DE    Size: (1.05 MB) LED PLANO 7FC Manual Deutsch
View FileLED PLANO 7FC Manual ES    Size: (1.05 MB) LED PLANO 7FC Manual Espanñol
View FileLED PLANO 7FC EC Declaration    Size: (635.3 KB) LED PLANO 7FC EC Declaration of Conformity
View FileLED PLANO 7FC Chromateq fixture files    Size: (845 Bytes) LED PLANO 7FC Chromateq fixture files
View FileLED PLANO 7FC Firmware update V1.10    Size: (203.99 KB) LED PLANO 7FC Firmware update V1.10 (d.d. 2022-01-24)
View FileLED_PLANO_7FC-W PDF leaflet Deutsch    Size: (1.03 MB) PDF_LEAFLET_LED_PLANO_7FC-W_04959_de.pdf
View FileLED_PLANO_7FC-W PDF leaflet English    Size: (1.03 MB) PDF_LEAFLET_LED_PLANO_7FC-W_04959_en.pdf
View FileLED_PLANO_7FC-W PDF leaflet Français    Size: (1.03 MB) PDF_LEAFLET_LED_PLANO_7FC-W_04959_fr.pdf
View FileLED_PLANO_7FC-W PDF leaflet Nederlands    Size: (1.03 MB) PDF_LEAFLET_LED_PLANO_7FC-W_04959_nl.pdf
