Details
Details

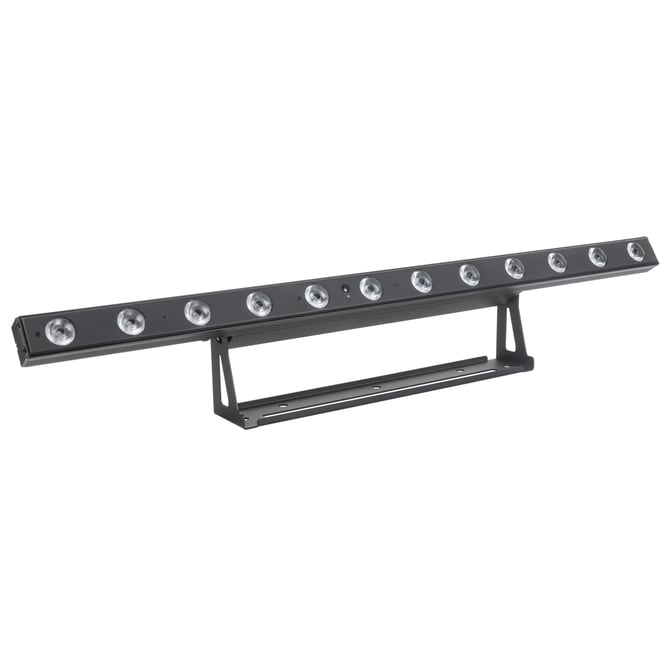

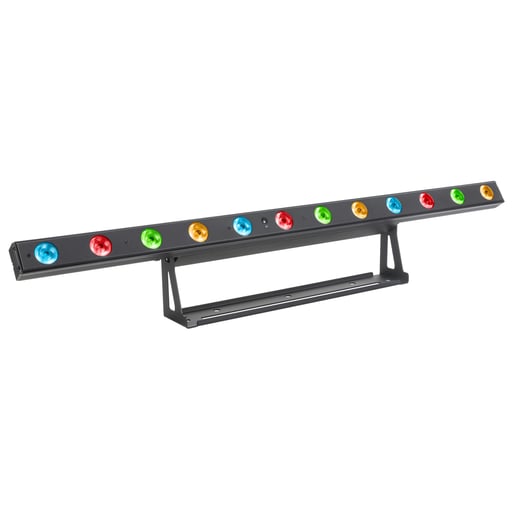

- Full color lightbar with 12x 3W RGB LED’s and individual pixel control
- Beam angle = 23°
- The perfect tool for DJs and clubs but also for use one stage!
- Different control options:
- Full DMX-control via 3, 4, 5, 8, 36, 39, 41 channels
- Can be used with the Ledcon-XL controller (chase patterns = 4 groups of 3 Led’s)
- Many different integrated automatic programs
- Sound activated mode with internal microphone
- Master/slave mode for bigger setups

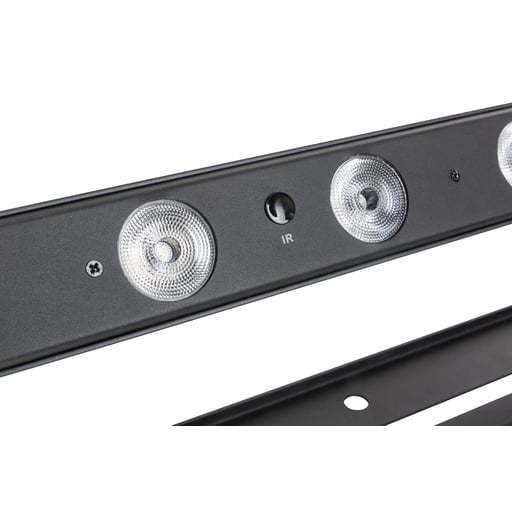

- Wireless IR remote controller included
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE !
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 100 x 14 x 8 |
|---|---|
| General : Weight (kg) | 3.8 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 50 |
| General : Color | black |
| General : Display | LED |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, standalone sound, standalone automatic, remote, manual, DMX, Master/Slave |
| Control : Protocol | DMX, Wireless DMX |
| Control : Type included remote | Infra-Red Remote |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 3 |
| Control : maximum DMX channels | 41 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | RGB |
| Light : mix colors | No |
| Light : max. refresh rate (kHz) | No |

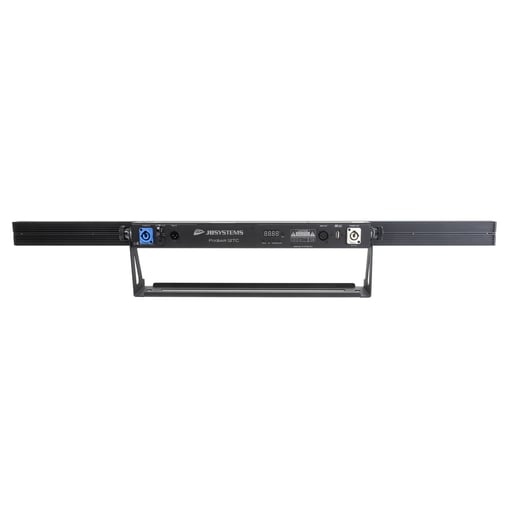

| Connections : input | 3 pin XLR, wireless DMX optional, PowerCon® or compatible |

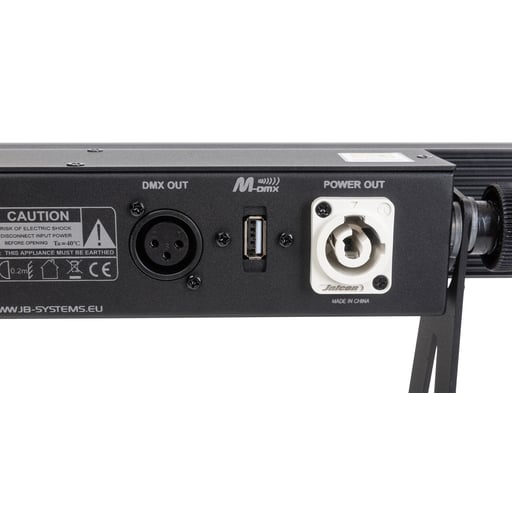

| Connections : output | 3 pin XLR, PowerCon® or compatible |
| Brand | JB SYSTEMS |
| EANCode | 5420025662260 |
Manual & Downloads
Manual & Downloads
 PIXBAR 12TC - Manual EN Size: (2.71 MB) |
PIXBAR 12TC - Manual EN |
| PIXBAR_12TC PDF leaflet Deutsch Size: (1.06 MB) |
PDF_LEAFLET_PIXBAR_12TC_B06226_de.pdf |
| PIXBAR_12TC PDF leaflet English Size: (1.06 MB) |
PDF_LEAFLET_PIXBAR_12TC_B06226_en.pdf |
| PIXBAR_12TC PDF leaflet Français Size: (1.06 MB) |
PDF_LEAFLET_PIXBAR_12TC_B06226_fr.pdf |
| PIXBAR_12TC PDF leaflet Nederlands Size: (1.06 MB) |
PDF_LEAFLET_PIXBAR_12TC_B06226_nl.pdf |
