Details
Details

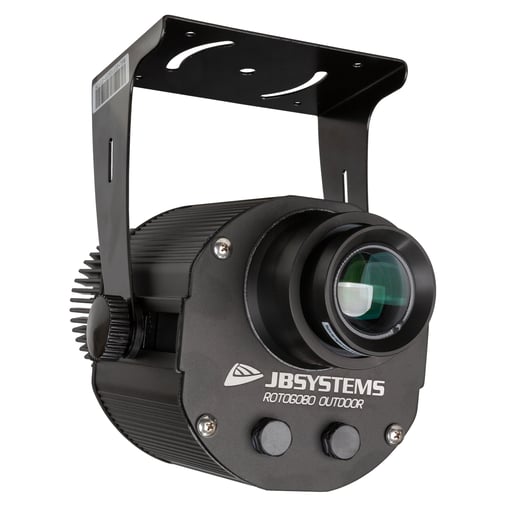

- A powerful logo projector based on a 100W cold white led

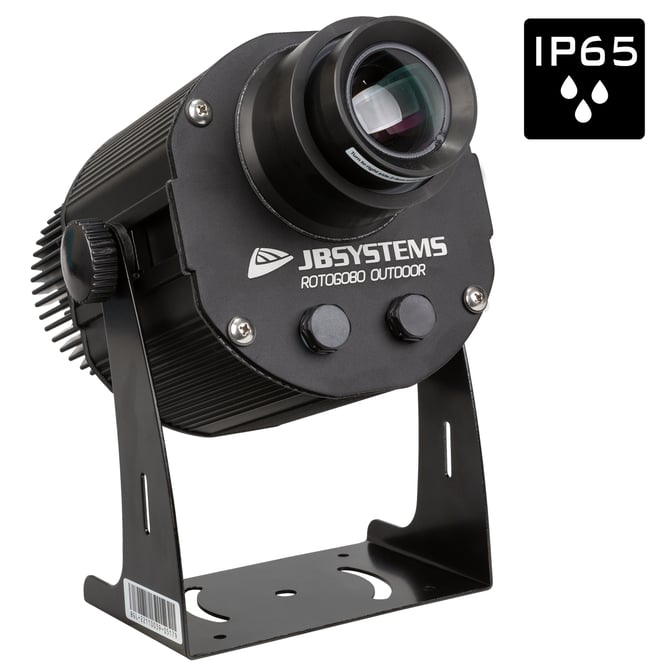

- IP65 protection: perfect for indoor and outdoor use!
- The professional 4-layer lens assures extremely sharp projections
- Precise adjustable focus
- Standard 20° projection beam

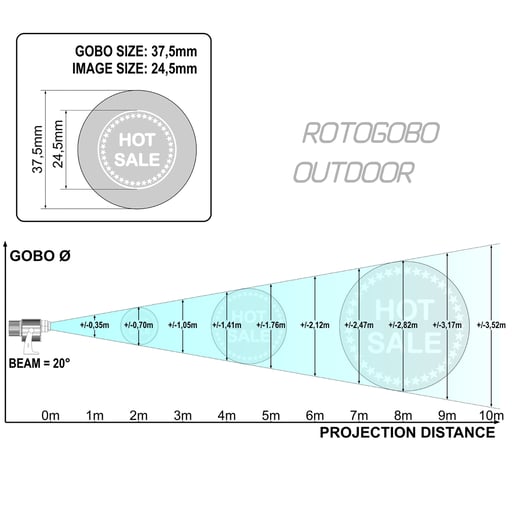

- Usable projection distance: from 1m to 20m

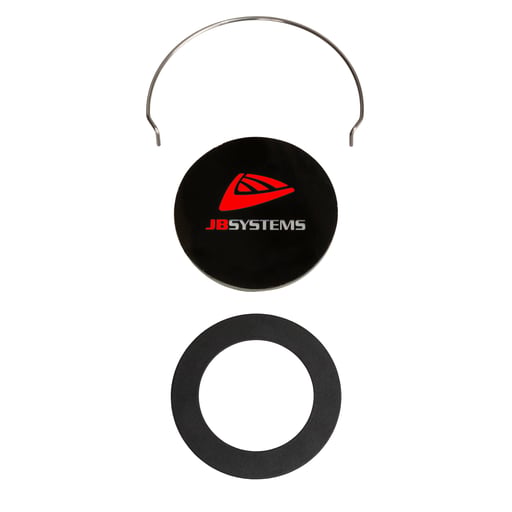

- Uses standard metal or glass gobos (Ø= 37.5mm + image Ø= 24.5mm)

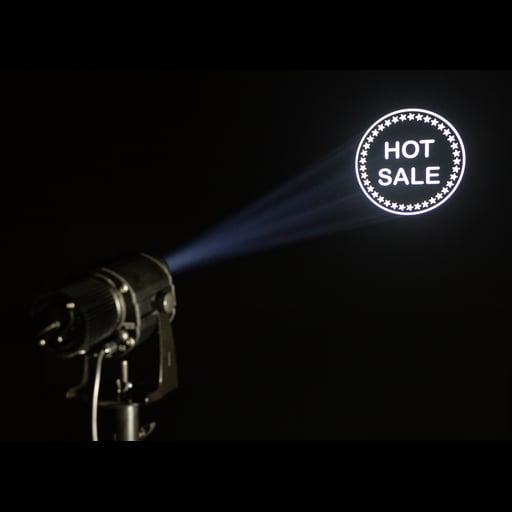

- A free glass gobo “HOT SALE” is included

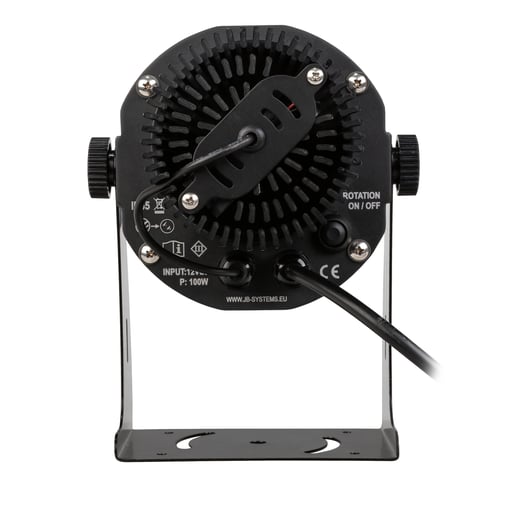

- Waterproof switch to gobo rotation on/off
- Low voltage 12Vdc projector design for maximum security
- IP65 waterproof 150W external power supply (Mean Well)

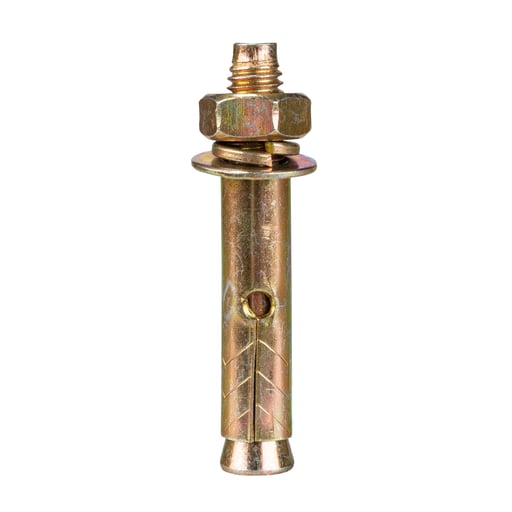

- Anchor bolt to fix the projector on brick and concrete surfaces included
Technical Specifications
Technical Specifications

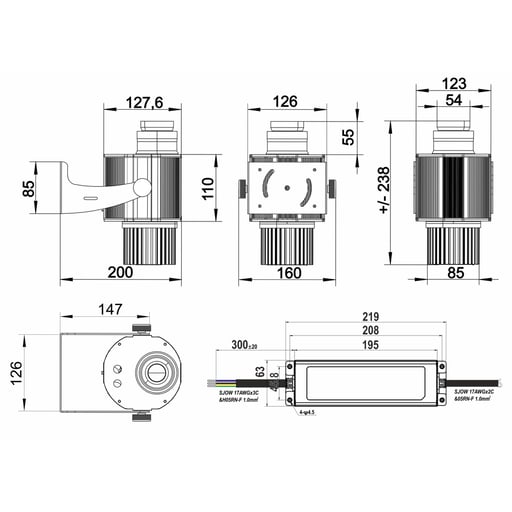

| General : Dimensions (cm) | 24 x 16 x 20 |
|---|---|
| General : Weight (kg) | 3 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 105 |
| General : Color | black |
| General : Display | none |
| General : Fixation | M10 |
| General : IP rating | outdoor |
| Control : Modes | standalone fixed, standalone automatic, manual |
| Control : programmable | No |
| Control : upgradable software | No |
| Light : lamp socket | No |
| Light : Lux | 1650 (@5m beam 20°) |
| Light : lamp | LED |
| Light : min. color temperature (K) | 8000 |
| Light : max. color temperature (K) | 8500 |
| Light : CRI | 85 |
| Light : colors | Cold white |
| Light : mix colors | No |
| Light : functions | manual focus |
| Light : fixed gobos | 1 |
| Light : rotating gobos | 1 |
| Light : min. beam angle (°) | 20.4 |
| Light : max. beam angle (°) | 20.4 |
| Light : max. refresh rate (kHz) | No |
| Connections : input | Schuko CEE 7/7 |
| Brand | JB SYSTEMS |
| EANCode | 5420025651790 |
Manual & Downloads
Manual & Downloads
 ROTOGOBO OUTDOOR - Manual EN Size: (904.99 KB) |
ROTOGOBO OUTDOOR - User Manual English |
| ROTOGOBO OUTDOOR - Manual NL Size: (753.36 KB) |
ROTOGOBO OUTDOOR - Handleiding Nederlands |
| ROTOGOBO OUTDOOR - Manual FR Size: (756.57 KB) |
ROTOGOBO OUTDOOR - Mode d'emploi Français |
| ROTOGOBO OUTDOOR - Manual DE Size: (756.51 KB) |
ROTOGOBO OUTDOOR - Bedienungsanleitung Deutsch |
| ROTOGOBO OUTDOOR - Manual ES Size: (755.07 KB) |
ROTOGOBO OUTDOOR - Manual de instrucciones Español |
| ROTOGOBO OUTDOOR - EC Declaration Size: (452.25 KB) |
ROTOGOBO OUTDOOR - EC Declaration of Conformity |
| ROTOGOBO_OUTDOO PDF leaflet Deutsch Size: (1.38 MB) |
PDF_LEAFLET_ROTOGOBO_OUTDOO_B05179_de.pdf |
| ROTOGOBO_OUTDOO PDF leaflet English Size: (1.38 MB) |
PDF_LEAFLET_ROTOGOBO_OUTDOO_B05179_en.pdf |
| ROTOGOBO_OUTDOO PDF leaflet Français Size: (1.38 MB) |
PDF_LEAFLET_ROTOGOBO_OUTDOO_B05179_fr.pdf |
| ROTOGOBO_OUTDOO PDF leaflet Nederlands Size: (1.38 MB) |
PDF_LEAFLET_ROTOGOBO_OUTDOO_B05179_nl.pdf |
