Details
Details

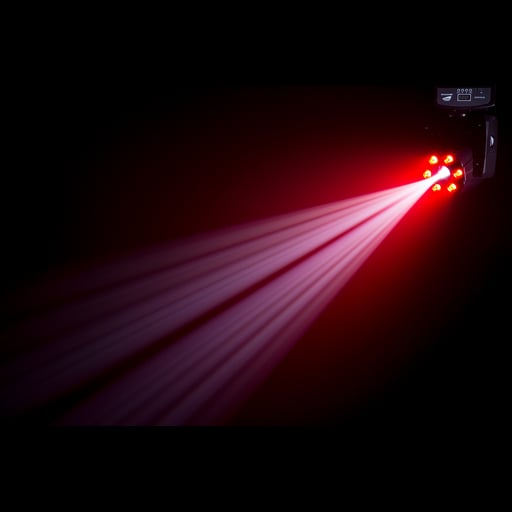

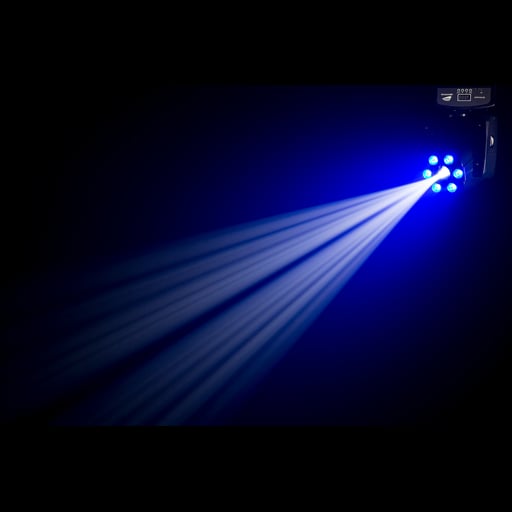

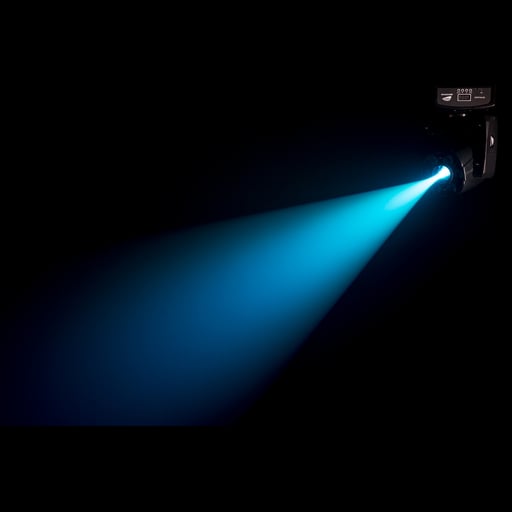

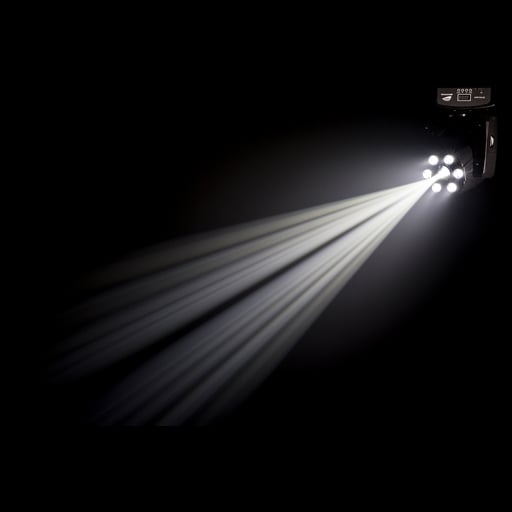

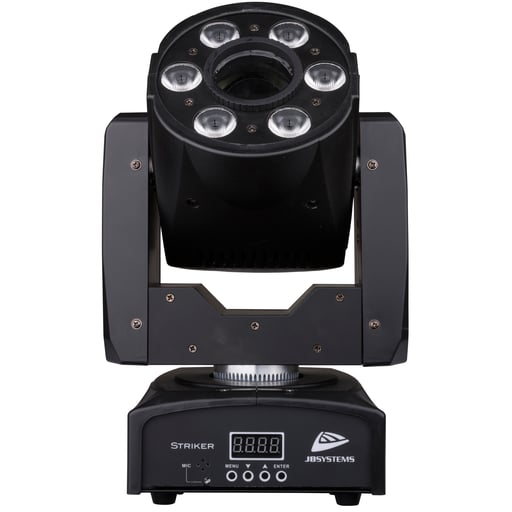

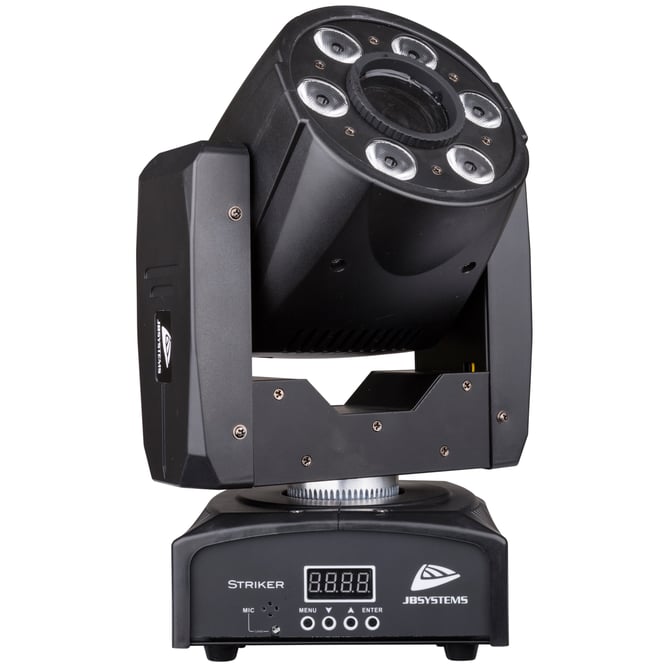

- An extremely compact but very bright LED moving spot and wash with 10° beam (spot)
- Specially designed for DJs and smaller clubs.
- Based on a 30W high power white LED (spot) and 6 RGBW 8W LED’S (Wash)
- Very low power consumption, only 95 W (money saving!)
- 0-100% dimming and different strobe effects

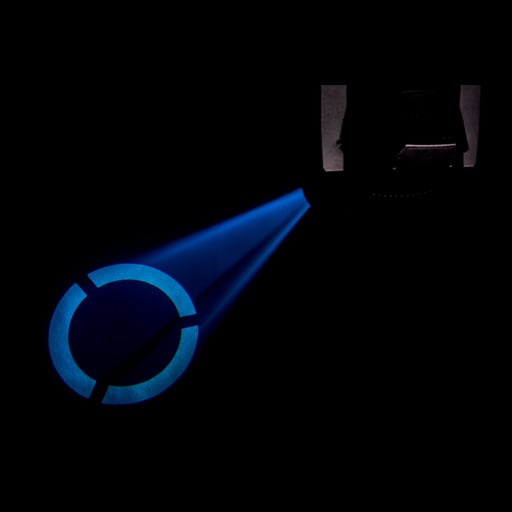

- Separate gobo wheel with 7 fixed gobos + open
- Separate color wheel with 7 colors + open
- Focus controlled by DMX
- Excellent built-in programs for wonderful, ever changing, light shows.
- Multiple working modes:
- DMX-control: via 5 or 19 channels
- Standalone: sound activated with internal mic
- Master/slave: wonderful synchronized shows in standalone mode
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq® order code: 4645).
- 4-digit LED-display for easy menu navigation
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 15x23x33 |
|---|---|
| General : Weight (kg) | 4.53 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 95 |
| General : Color | black |
| General : Display | LED |
| General : IP rating | indoor |
| Control : Modes | standalone sound, standalone automatic, manual, DMX, Master/Slave |
| Control : Protocol | DMX, Wireless DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 5 |
| Control : maximum DMX channels | 19 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | RGBW |
| Light : mix colors | No |
| Light : functions | motorized focus |
| Light : fixed gobos | 7 |
| Light : min. beam angle (°) | 10 |
| Light : max. refresh rate (kHz) | No |

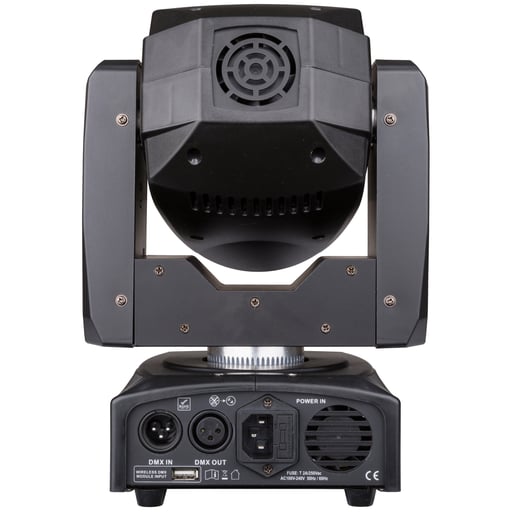

| Connections : input | 3 pin XLR, wireless DMX optional, IEC |
| Connections : output | 3 pin XLR |
| Brand | JB SYSTEMS |
| EANCode | 5420025641906 |
