Details
Details

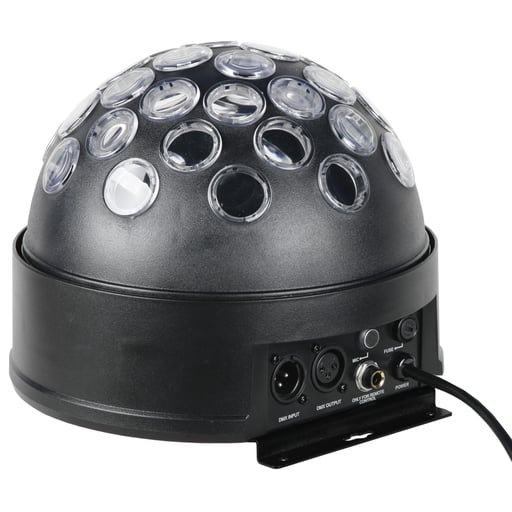

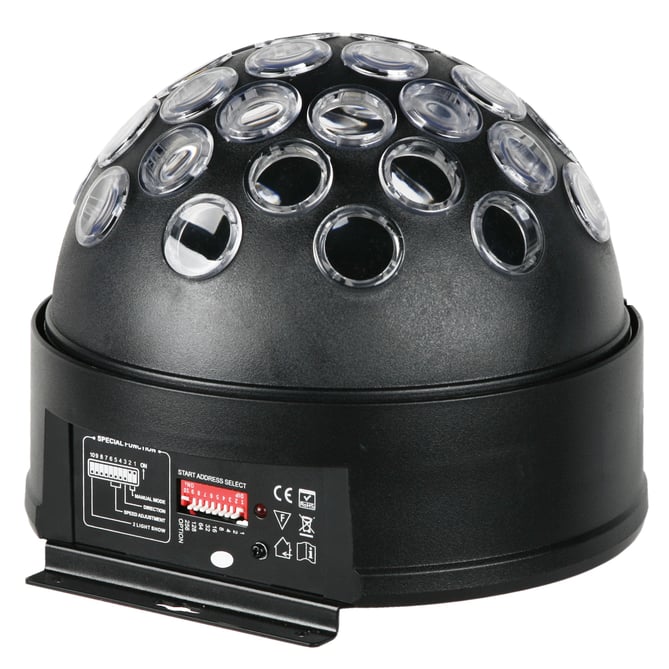

- An extremely compact, DMX-controlled, LED effect

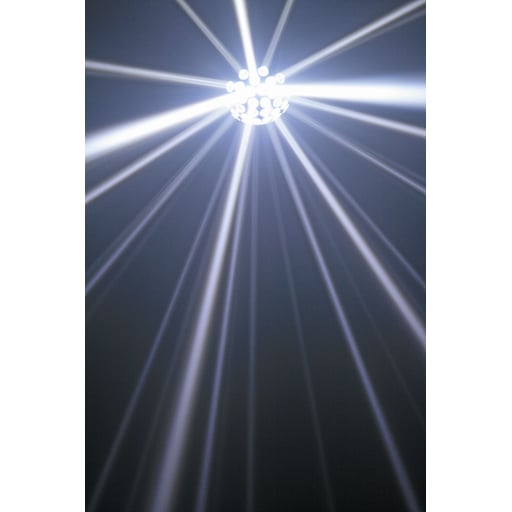

- Projects 34 sharp white beams with dynamic internal programs!
- 0-100% dimming and ultra fast strobe function
- Adjustable rotation speed from extremely slow to very fast
- Different user modes for maximum flexibility:
- - DMX-control: 1 or 2 channels
- - Standalone: automatic or sound activated with internal mic
- - Master/slave: wonderful synchronized shows
- Optional CA-8 remote controller available
- Based on a powerful 10 Watt White:
- - Extremely brilliant beams compared to effects with halogen lamps
- - More dynamic effects compared to effects based on halogen lamps
- - No lamp replacements!
- - Extremely long lifespan!
- - Virtually no heat production
- - Very low power consumption
- - Lightweight (no lamp transformers needed)
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 21 x 21 x17.9 cm |
|---|---|
| General : Weight (kg) | 2.7 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 27 |
| General : Color | black |
| General : Display | LED |
| General : IP rating | indoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : optional remote | CA-8 |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 2 |
| Light : lamp socket | none |
| Light : lamp | LED |
| Light : colors | White |
| Light : mix colors | No |
| Light : functions | N/A |
| Light : max. refresh rate (kHz) | No |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025641630 |
Manual & Downloads
Manual & Downloads
 SUPERSOLAR WHITE Manual Size: (1.24 MB) |
|
| SUPERSOLAR WHITE EC declaration Size: (568.01 KB) |
|
| SUPERSOLAR_WHIT PDF leaflet Deutsch Size: (547.34 KB) |
PDF_LEAFLET_SUPERSOLAR_WHIT_04163_de.pdf |
| SUPERSOLAR_WHIT PDF leaflet English Size: (546.61 KB) |
PDF_LEAFLET_SUPERSOLAR_WHIT_04163_en.pdf |
| SUPERSOLAR_WHIT PDF leaflet Français Size: (548.89 KB) |
PDF_LEAFLET_SUPERSOLAR_WHIT_04163_fr.pdf |
| SUPERSOLAR_WHIT PDF leaflet Nederlands Size: (547.03 KB) |
PDF_LEAFLET_SUPERSOLAR_WHIT_04163_nl.pdf |
