Details
Details

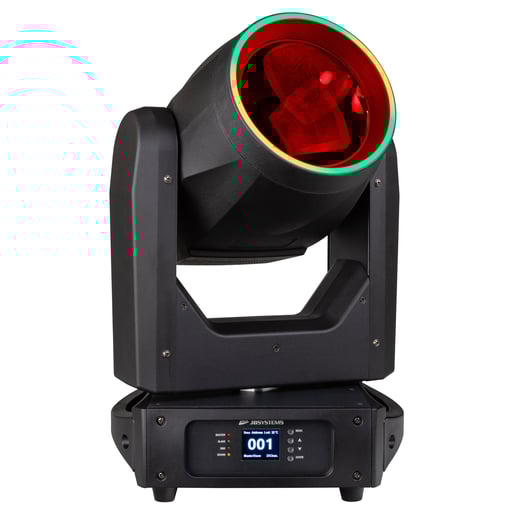

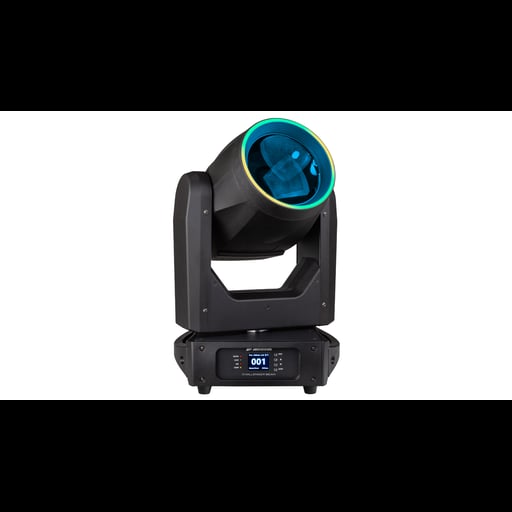

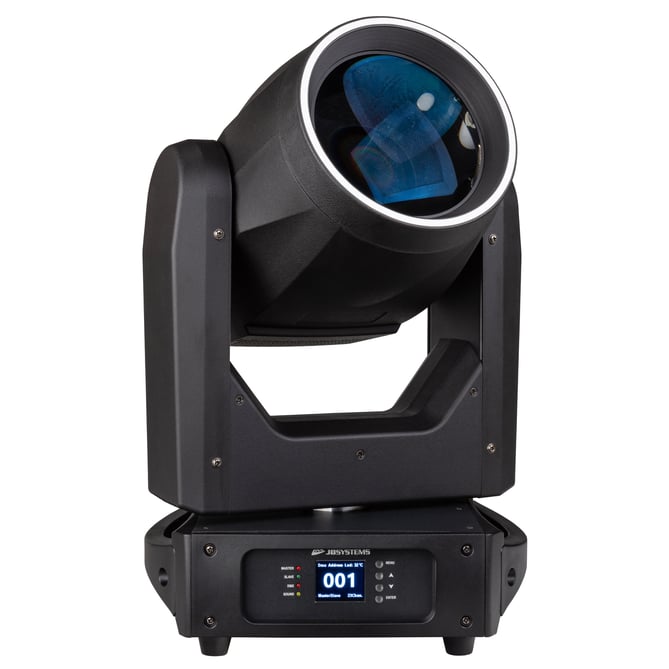

- Powerful Moving BEAM, based on a 200W high power LED!

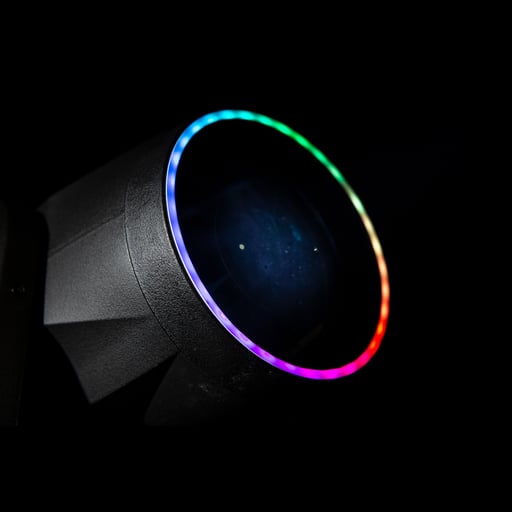

- AURA-effect with 36 pixel-controlled RGB leds, using macros!
- Sharp and powerful 2.8° beam with 110’500 lux @ 5m
- The 2 separate bi-directional rotating prisms can be mixed for stunning effects:
- 8 facet prism
- 24 facet prism
- 0-100% dimming and different strobe effects
- Gobo wheel with 13 fixed gobos + open
- Color wheel with 14 colors (including multi color) + open
- Motorized frost (on/off)
- DMX controlled focus
- Excellent built-in programs for wonderful, ever changing, light shows
- Multiple working modes:
- DMX-control: via 5, 23 or 27 channels
- Standalone: sound activated with internal mic
- Master/slave:
- Wonderful synchronized shows in standalone mode
- Very easy 5CH SMART-DMX (audio-controlled pan/tilt + DMX-controlled functions)
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE !
- Color LCD-display for easy menu navigation
- 3p and 5p XLR connectors for DMX in- and output
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 33 x 24.5 x 45.3 (WxDxH) |
|---|---|
| General : Weight (kg) | 14.5 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 285 |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | included omega bracket |
| General : IP rating | indoor |
| Control : Modes | standalone sound, standalone automatic, DMX, Master/Slave |
| Control : Protocol | DMX, Wireless DMX |
| Control : optional remote | WTR-DMX DONGLE |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | 5 |
| Control : maximum DMX channels | 27 |
| Light : lamp socket | No |
| Light : Lux | 110500 (@5m) |
| Light : lamp | LED |
| Light : mix colors | No |
| Light : functions | motorized focus, motorized frost, 8 facet round prism, 24 facet round prism |
| Light : fixed gobos | 13 |
| Light : max. beam angle (°) | 3 |
| Light : max. refresh rate (kHz) | No |

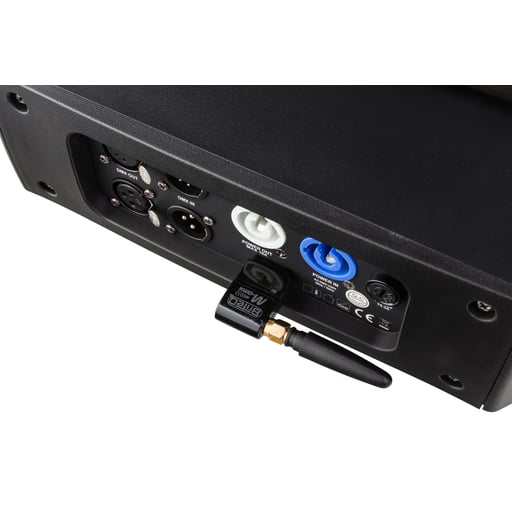

| Connections : input | 3 pin XLR, 5 pin XLR, usb, PowerCon® or compatible |
| Connections : output | 3 pin XLR, 5 pin XLR, PowerCon® or compatible |
| Brand | JB SYSTEMS |
| EANCode | 5420025655705 |
Manual & Downloads
Manual & Downloads
 CHALLENGER BEAM - Manual V1.0 EN Size: (2.07 MB) |
CHALLENGER BEAM - Manual V1.0 English |
| CHALLENGER BEAM - Manual V1.0 NL Size: (2.11 MB) |
CHALLENGER BEAM - Handleiding V1.0 Nederlands |
| CHALLENGER BEAM - Manual V1.0 FR Size: (2.02 MB) |
CHALLENGER BEAM - Mode d'emploi V1.0 Français |
| CHALLENGER BEAM - Manual V1.0 DE Size: (2.04 MB) |
CHALLENGER BEAM - Bedienungsanleitung V1.0 Deutsch |
| CHALLENGER BEAM - Manual V1.0 ES Size: (2.02 MB) |
CHALLENGER BEAM - Manual de instrucciones V1.0 Español |
| CHALLENGER BEAM - EC Declaration Size: (444.71 KB) |
CHALLENGER BEAM - EC Declaration of Conformity |
| CHALLENGER_BEAM PDF leaflet Deutsch Size: (1.3 MB) |
PDF_LEAFLET_CHALLENGER_BEAM_B05570_de.pdf |
| CHALLENGER_BEAM PDF leaflet English Size: (1.3 MB) |
PDF_LEAFLET_CHALLENGER_BEAM_B05570_en.pdf |
| CHALLENGER_BEAM PDF leaflet Français Size: (1.3 MB) |
PDF_LEAFLET_CHALLENGER_BEAM_B05570_fr.pdf |
| CHALLENGER_BEAM PDF leaflet Nederlands Size: (1.3 MB) |
PDF_LEAFLET_CHALLENGER_BEAM_B05570_nl.pdf |
