Details
Details

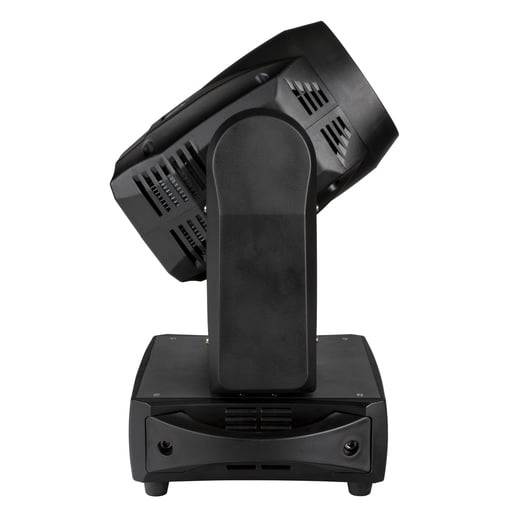

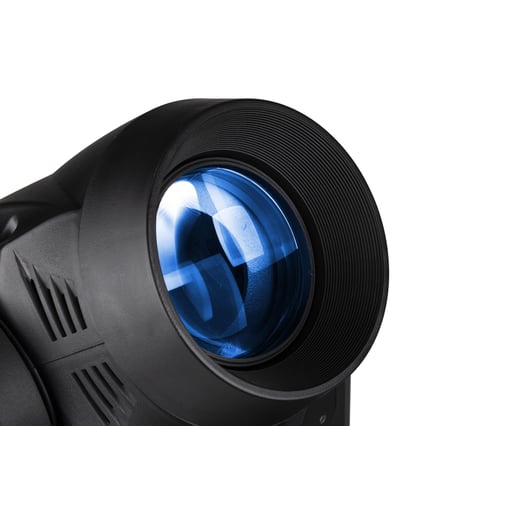

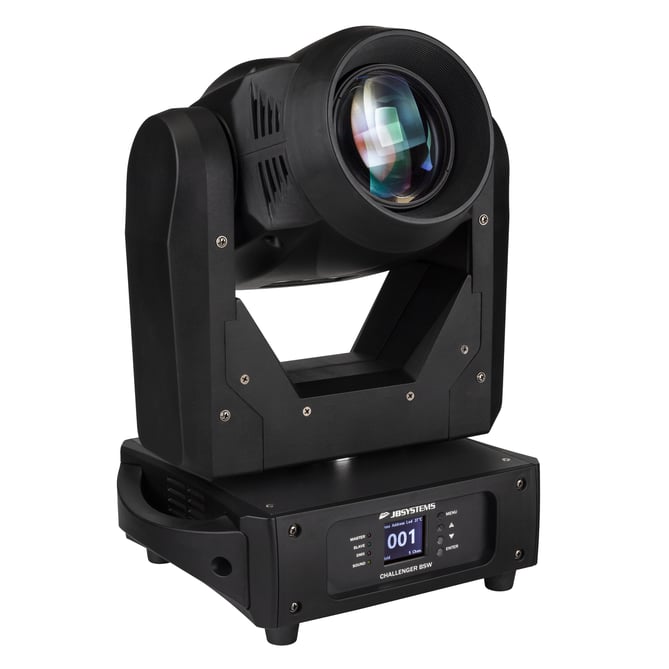

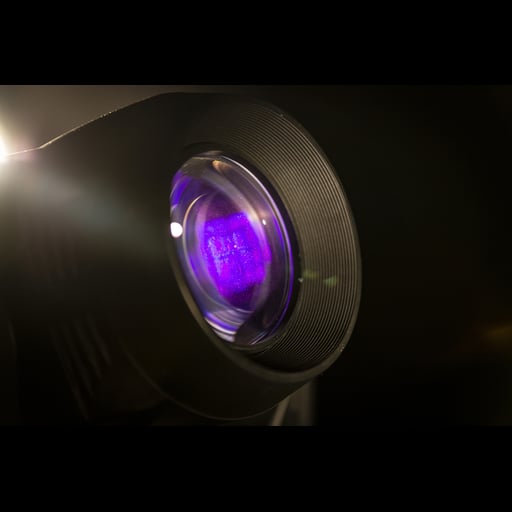

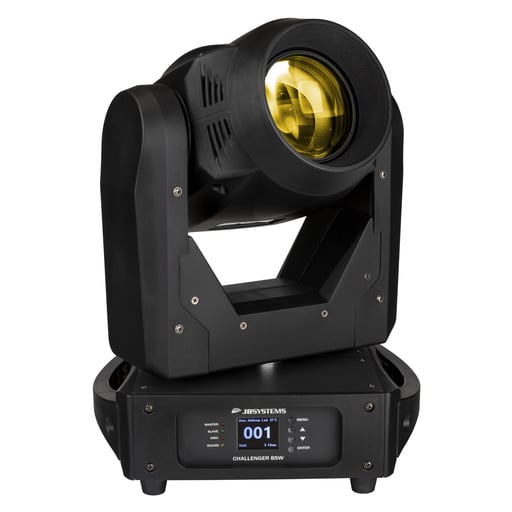

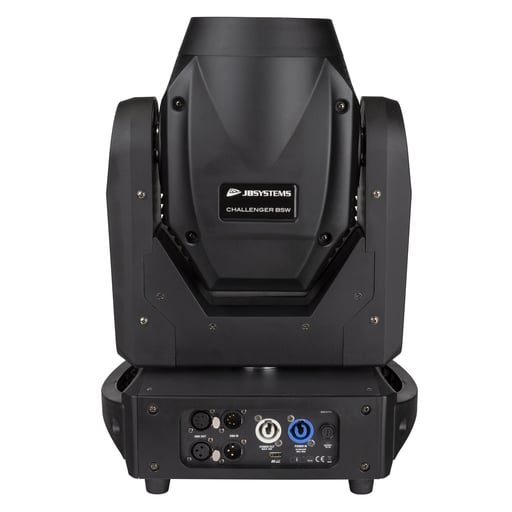

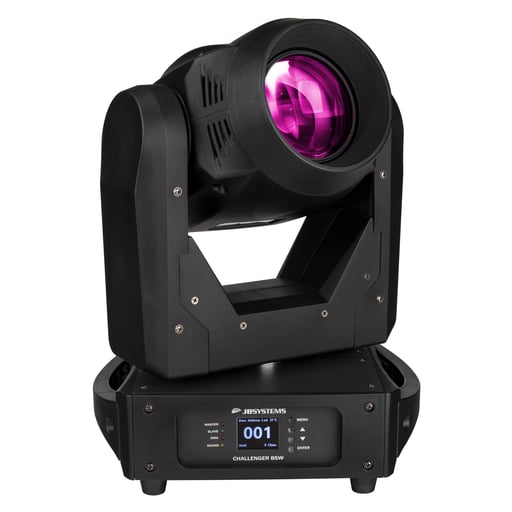

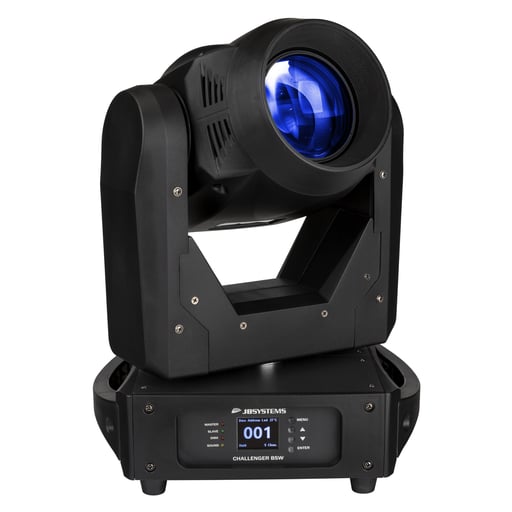

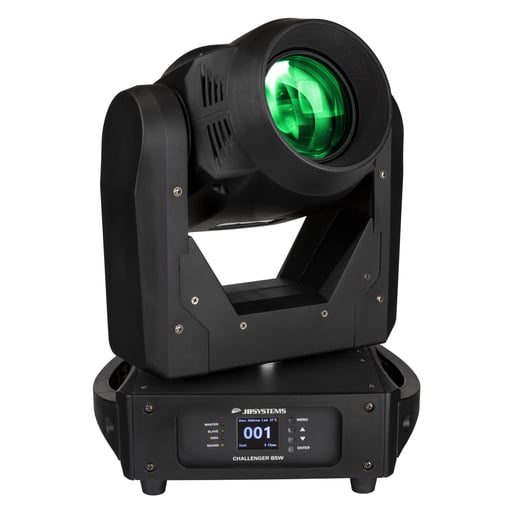

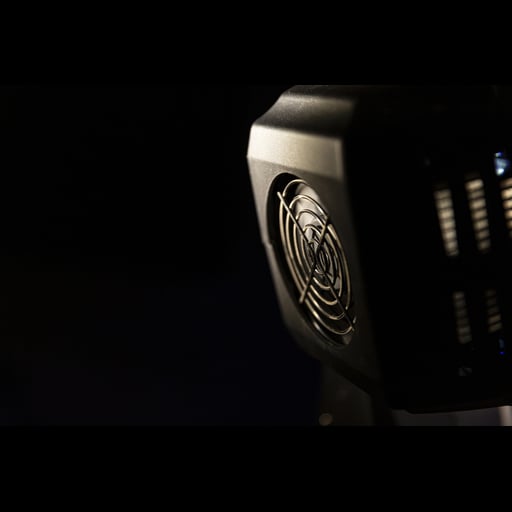

- 3in1 LED Moving Head – Beam/Spot/Wash
- Based on a 150W high power LED
- Focus controlled by DMX

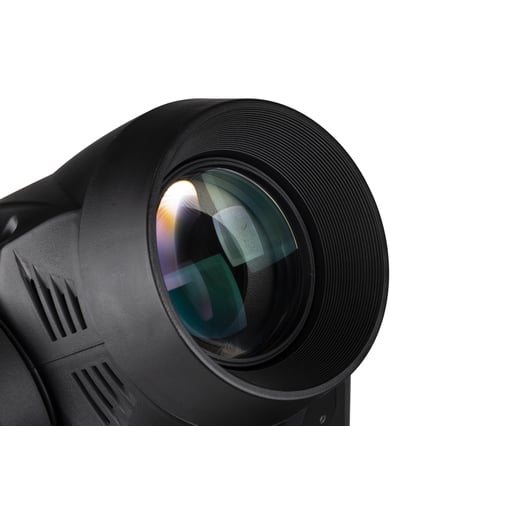

- Zoom controlled by DMX
- 3 facet rotating prism
- 0-100% dimming and different strobe effects
- Separate gobo wheel with 7 fixed gobos + open
- Separate gobo wheel with 6 replaceable rotating gobos + open (gobo size: 23.8mm * image size: 20mm)
- Color wheel with 8 colors + open
- Excellent built-in programs for wonderful, ever changing, light shows.
- Multiple working modes:
- DMX-control: via 5, 17 or 20 channels
- Standalone: sound activated with internal mic
- Master/slave: Wonderful synchronized shows in standalone mode
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq® order code: B04645)
- Color LCD-display for easy menu navigation
- 3p and 5p XLR connectors for DMX in- and output.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 45.2 x 29 x 25.6 |
|---|---|
| General : Weight (kg) | 12.32 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 189 |
| General : Color | black |
| General : Display | LCD |
| General : Fixation | included omega bracket |
| General : IP rating | indoor |
| Control : Modes | standalone sound, standalone automatic, manual, DMX, Master/Slave |
| Control : Protocol | DMX, Wireless DMX |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | 5 |
| Control : maximum DMX channels | 20 |
| Light : lamp socket | No |
| Light : lamp | COB |
| Light : mix colors | No |
| Light : functions | motorized focus, motorized zoom, 3 facet round prism |
| Light : fixed gobos | 7 |
| Light : rotating gobos | 6 |
| Light : min. beam angle (°) | 10 |
| Light : max. beam angle (°) | 17 |
| Light : max. refresh rate (kHz) | No |

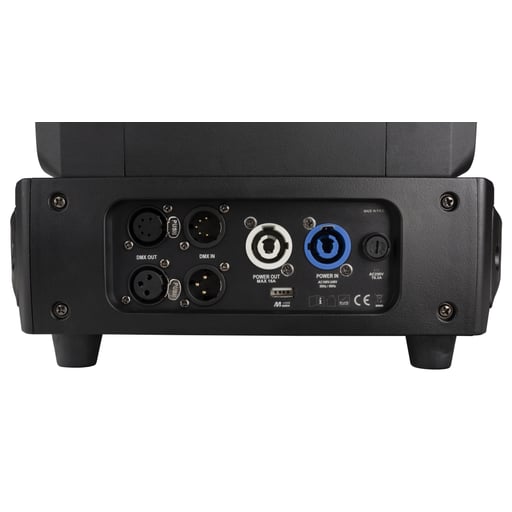

| Connections : input | 3 pin XLR, 5 pin XLR, wireless DMX optional, PowerCon® or compatible |
| Connections : output | 3 pin XLR, 5 pin XLR, PowerCon® or compatible |
| Brand | JB SYSTEMS |
| EANCode | 5420025655286 |
