F1 CHALLENGER WASH Zoom

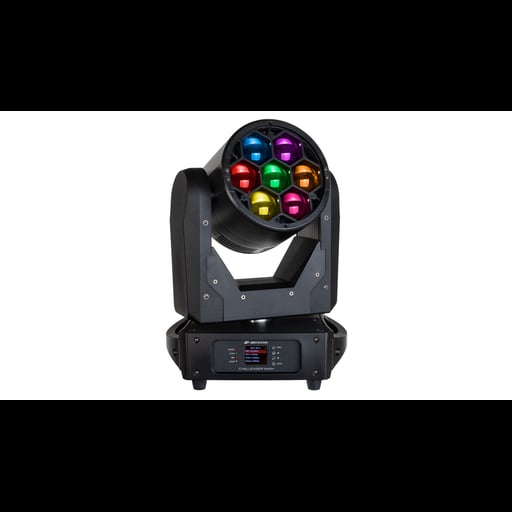

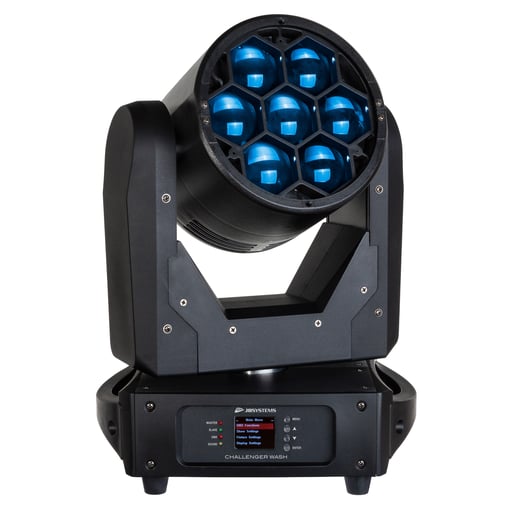

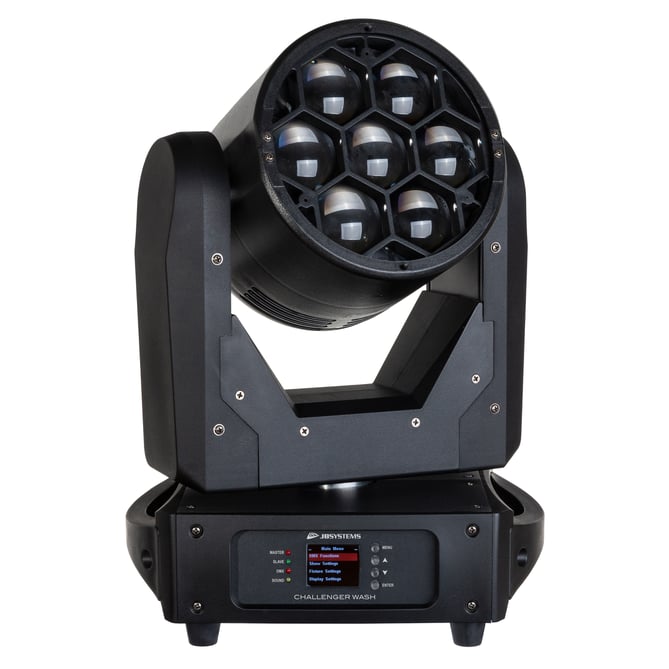

CHALLENGER WASH

Be the first to review this product

Powerful, yet budget friendly 7x40W moving wash with pixel mapping and motorized zoom! Ideal for DJ’s, smaller theatres and rental companies
SKU: B05539
EANCODE: 5420025655392

Details

Details

  • Powerful Moving Wash equipped with 7x40W RGBW LEDs.
  • Full pixel mapping !
  • Zoom controlled by DMX.
  • 0-100% dimming and different strobe effects.
  • Silent operation even at full output.
  • Excellent built-in programs for wonderful, ever changing, light shows.
  • Multiple working modes:
    • DMX-control: via 5, 15, 38 or 43 channels
    • Standalone: sound activated with internal mic
    • Master/slave: Wonderful synchronized shows in standalone mode.
  • Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE !
  • Color LCD-display for easy menu navigation.
  • 3pin and 5pin XLR connectors for DMX in- and output.

Technical Specifications

Technical Specifications

General : Dimensions (cm) 29.2 x 24.4 x 41.7
General : Weight (kg) 10
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Power consumption W 320
General : Color black
General : Display LCD
General : Fixation included omega bracket
General : IP rating indoor
Control : Modes standalone sound, standalone automatic, manual, DMX, Master/Slave
Control : Protocol DMX, Wireless DMX
Control : programmable No
Control : upgradable software Yes
Control : minimum DMX channels 5
Control : maximum DMX channels 43
Light : lamp socket No
Light : Lux 545 (@5m, beam 60°) - 14335 (@5m, beam 5°)
Light : lamp LED
Light : colors RGBW
Light : mix colors Yes
Light : functions motorized zoom
Light : min. beam angle (°) 5
Light : max. beam angle (°) 60
Light : max. refresh rate (kHz) No

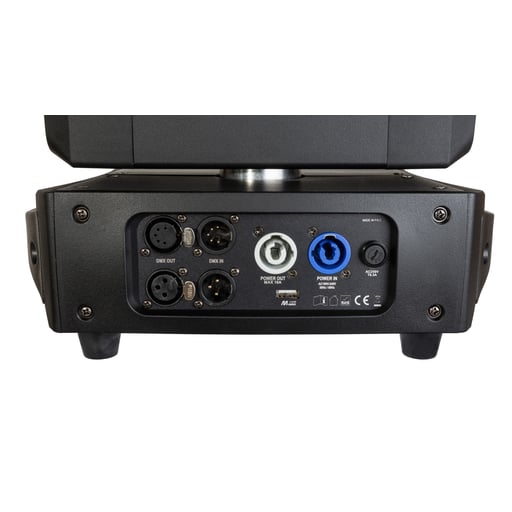

Connections : input 3 pin XLR, 5 pin XLR, wireless DMX optional, usb, PowerCon® or compatible
Connections : output 3 pin XLR, 5 pin XLR, usb, PowerCon® or compatible
Brand JB SYSTEMS
EANCode 5420025655392

Manual & Downloads

Manual & Downloads

View FileCHALLENGER WASH - Manual V4.0 EN    Size: (1.39 MB) CHALLENGER WASH - Manual V4.0 English (from Firmware V1.5)
View FileCHALLENGER WASH - Manual V4.0 NL    Size: (1.4 MB) CHALLENGER WASH - Handleiding V4.0 Nederlands (vanaf Firmware V1.5)
View FileCHALLENGER WASH - Manual V4.0 FR    Size: (1.41 MB) CHALLENGER WASH - Mode d'emploi V4.0 Français (à partir du Firmware V1.5)
View FileCHALLENGER WASH - Manual V4.0 DE    Size: (1.41 MB) CHALLENGER WASH - Bedienungsanleitung V4.0 Deutsch (ab Firmware V1.5)
View FileCHALLENGER WASH - Manual V4.0 ES    Size: (1.41 MB) CHALLENGER WASH - Manual de instrucciones V4.0 Español (a partir del Firmware V1.5)
View FileCHALLENGER WASH - Manual V5.0 ES    Size: (2.49 MB) CHALLENGER WASH - Manual de instrucciones V5.0 Español (a partir del Firmware V1.6)
View FileCHALLENGER WASH - Manual V5.0 EN    Size: (2.7 MB) CHALLENGER WASH - Manual V5.0 English (from Firmware V1.6)
View FileCHALLENGER WASH - Manual V5.0 NL    Size: (2.48 MB) CHALLENGER WASH - Handleiding V5.0 Nederlands (vanaf Firmware V1.6)
View FileCHALLENGER WASH - Manual V5.0 FR    Size: (2.49 MB) CHALLENGER WASH - Mode d'emploi V5.0 Français (à partir du Firmware V1.6)
View FileCHALLENGER WASH - Manual V5.0 DE    Size: (2.49 MB) CHALLENGER WASH - Bedienungsanleitung V5.0 Deutsch (ab Firmware V1.6)
View FileCHALLENGER WASH - EC Declaration    Size: (229.53 KB) CHALLENGER WASH - EC Declaration of Conformity
View FileCHALLENGER WASH - Firmware V1.5    Size: (265.13 KB) CHALLENGER WASH - Firmware V1.5 (2023-11-28)
View FileCHALLENGER WASH - Firmware V1.6    Size: (265.39 KB) CHALLENGER WASH - Firmware V1.6 (2024-03-26)
View FileCHALLENGER WASH - Chromateq Profile    Size: (4.1 KB) CHALLENGER WASH - Chromateq Profile
View FileCHALLENGER_WASH PDF leaflet Deutsch    Size: (1.47 MB) PDF_LEAFLET_CHALLENGER_WASH_B05539_de.pdf
View FileCHALLENGER_WASH PDF leaflet English    Size: (1.47 MB) PDF_LEAFLET_CHALLENGER_WASH_B05539_en.pdf
View FileCHALLENGER_WASH PDF leaflet Français    Size: (1.47 MB) PDF_LEAFLET_CHALLENGER_WASH_B05539_fr.pdf
View FileCHALLENGER_WASH PDF leaflet Nederlands    Size: (1.47 MB) PDF_LEAFLET_CHALLENGER_WASH_B05539_nl.pdf
