Details
Details

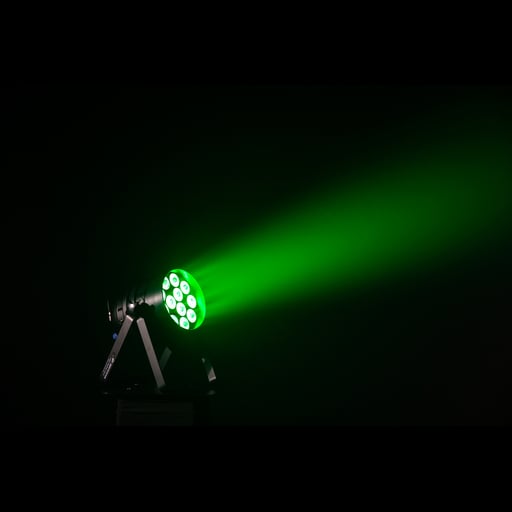

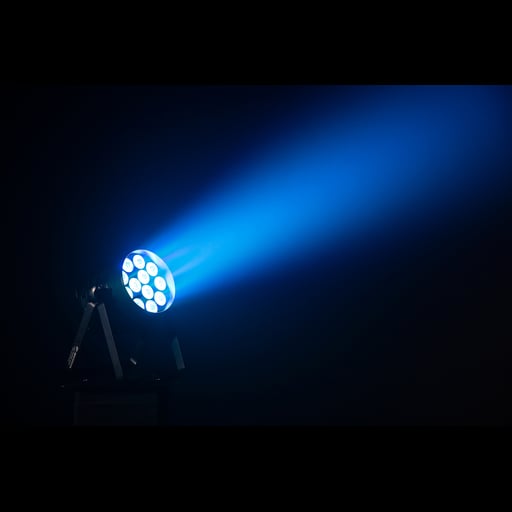

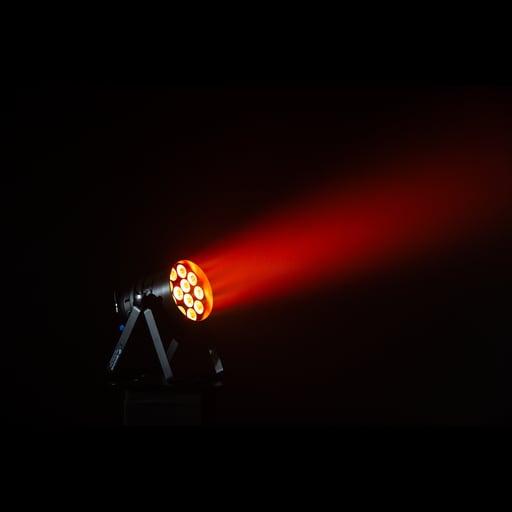

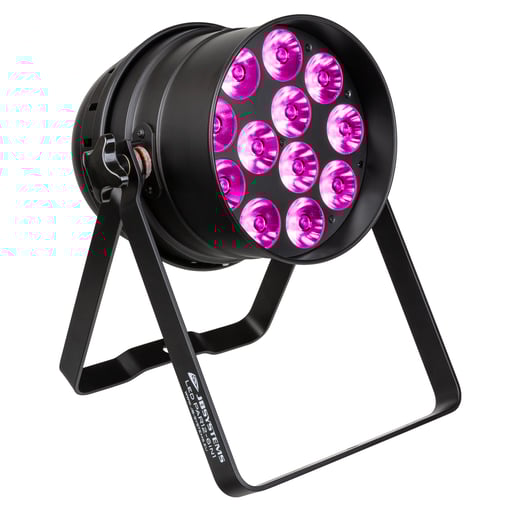

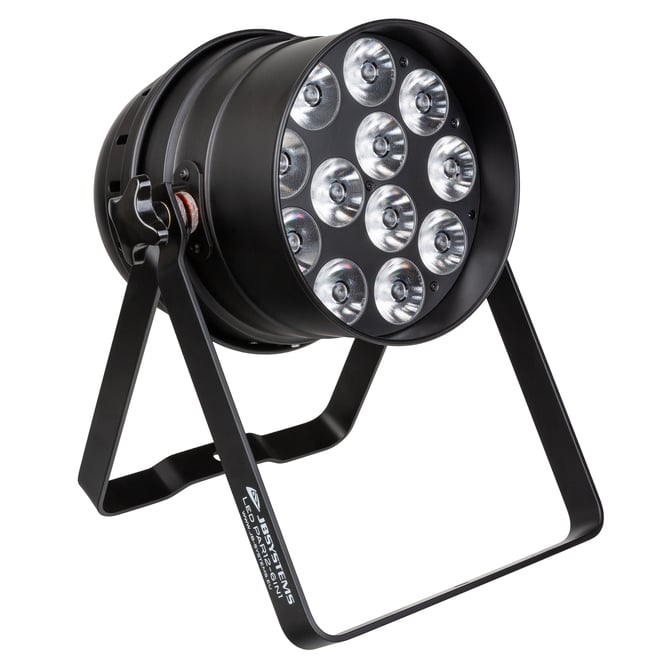

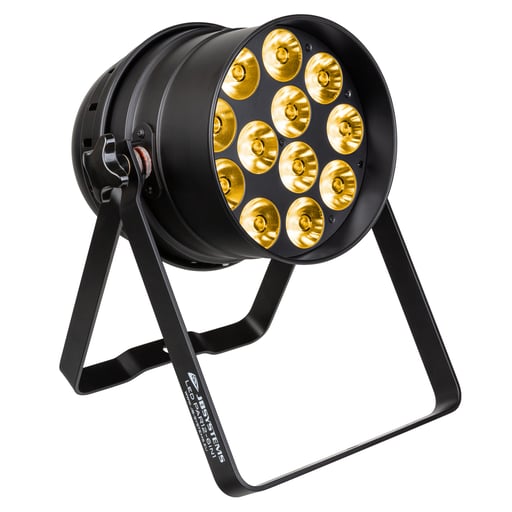

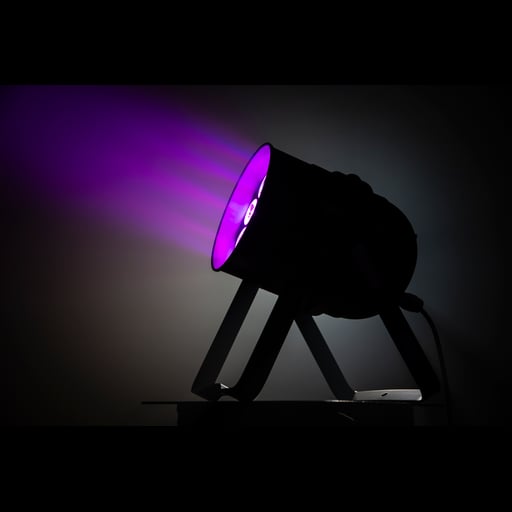

- High performance LED projector in a short PAR64 housing

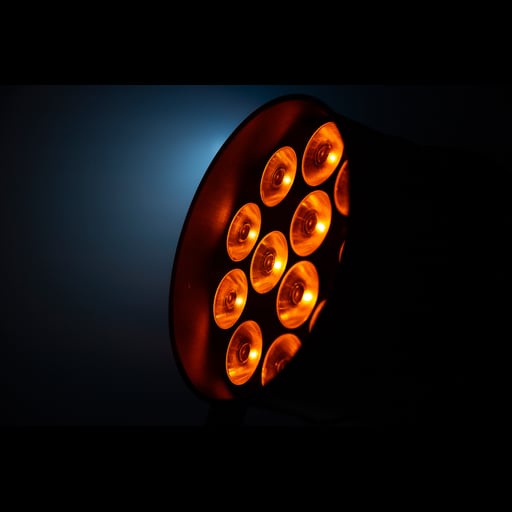

- Equipped with 12x 20W RGBLA + UV LEDs

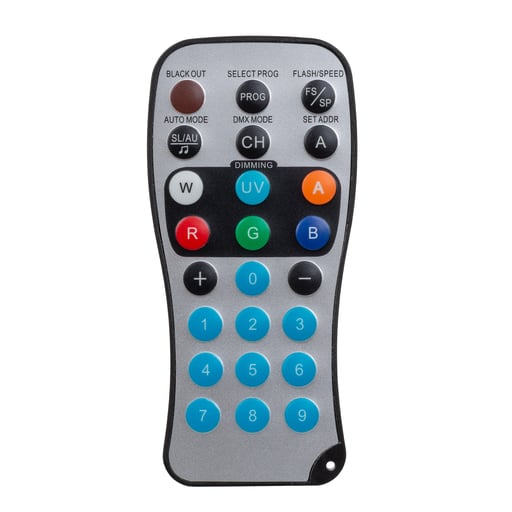

- IR-remote controller included
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE!
- Different working modes:
- Standalone with IR-remote: automatic or beat synchronized color patterns
- Master/slave mode: several projectors can be used together for synchronized lightshows
- DMX-controlled: different channel modes with program selection and individual color control
- Can be used with the LEDCON-XL controller!
- Compatibility mode for the LEDCON-02 Mk2 controller (only RGB control)
- Perfect for mobile applications: low power consumption, high light output
- Many applications possible: Discotheques, DJs, rental companies, ...
- 0-100% dimming and ultra-fast strobe function (no additional strobes needed!)
- OLED-display for easy menu navigation
- Double bracket: easy for use as floor spot!
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 34 x 27 x 22 |
|---|---|
| General : Weight (kg) | 3.47 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 107 |
| General : Color | black |
| General : Display | OLED |
| General : Fixation | M12 |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, standalone sound, standalone automatic, remote, manual, DMX, Master/Slave |
| Control : Protocol | DMX, Wireless DMX |
| Control : Type included remote | IR-remote controller |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 2 |
| Control : maximum DMX channels | 9 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue, UV, Amber, Lime, RGBAL |
| Light : mix colors | No |
| Light : min. beam angle (°) | 17 |
| Light : max. beam angle (°) | 17 |
| Light : max. refresh rate (kHz) | No |

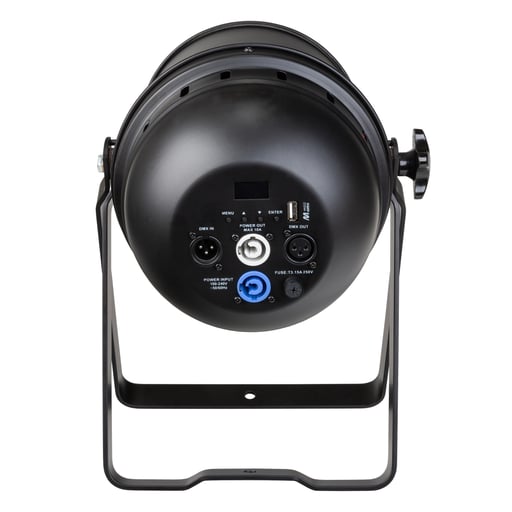

| Connections : input | 3 pin XLR, wireless DMX optional, PowerCon® or compatible |
| Connections : output | 3 pin XLR, PowerCon® or compatible |
| Brand | JB SYSTEMS |
| EANCode | 5420025655743 |
