Details
Details

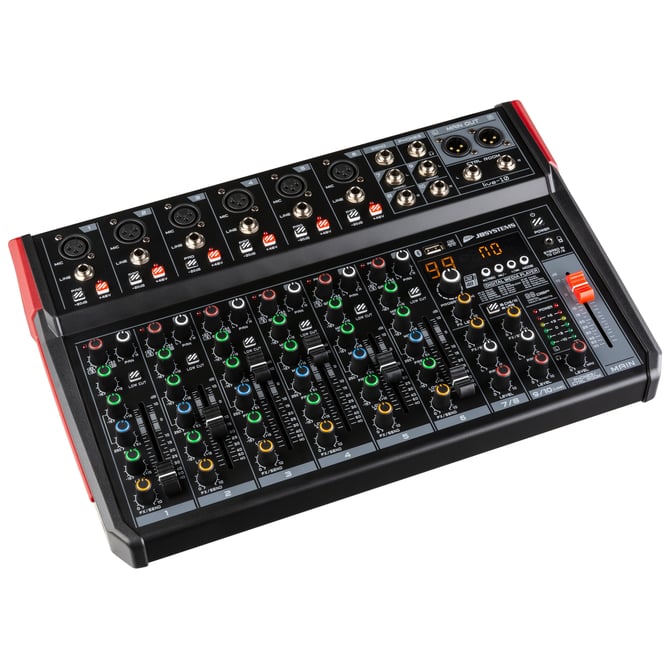

- Versatile PA mixer in a handy compact format.
- Powered by a 5V USB connector.
- Combine it with a power bank and battery powered speakers to be 100% mobile.
- 10 inputs over 8 channels (6 mic/line, 1 mono/stereo line, 1 mono/stereo line /USB/player).
- The USB connector is Bidirectional and can be used for stereo recording or playback via PC/Mac
- Internal WMA, WAV, FLAC, APE and MP3 media player for USB memory sticks.
- The media player can also be used as a stereo recorder
- Integrated Bluetooth receiver.
- Internal 32bit DSP-effect unit with 99 effect variations.
- Input control on all the MONO channels:
- Individual 48V Phantom Power switch on each mono channel !
- -20dB PAD switch
- Gain
- Pan
- Low Cut filter switch
- Treble, semi-parametric mid, bass
- Effect send
- Channel level fader
- Balanced Master output.
- Headphones + control room output with level control.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 41(W) x 28(D) x 6(H) |
|---|---|
| General : Weight (kg) | 3 |
| General : Powerinput | USB 5Vdc |
| General : Energy Label | No |
| General : Power consumption W | 9 |
| General : Color | black |
| General : Display | No |
| General : RU | No |
| Audio : min. frequency (Hz) | 20 |
| Audio : max. frequency (Hz) | 20000 |
| Audio : supported audio formats | APE, FLAC, MP3, WAV, WMA |
| Audio : supported audio media | USB |
| Audio : functions | equalizer, sound effects |
| Connections : input | 3 pin XLR, rca, jack, usb, bluetooth |
| Connections : output | 3 pin XLR, rca, jack, usb |
| Brand | JB SYSTEMS |
| EANCode | 5420025684040 |
Manual & Downloads
Manual & Downloads
 LIVE-6 / LIVE-10 - Manual V1.0 EN Size: (4.9 MB) |
LIVE-6 / LIVE-10 - Manual V1.0 English |
| LIVE-6 / LIVE-10 - Manual V1.0 FR Size: (4.74 MB) |
LIVE-6 / LIVE-10 - Manual V1.0 Français |
| LIVE-6 / LIVE-10 - Manual V1.0 NL Size: (4.72 MB) |
LIVE-6 / LIVE-10 - Manual V1.0 Nederlands |
| LIVE-6 / LIVE-10 - Manual V1.0 DE Size: (4.62 MB) |
LIVE-6 / LIVE-10 - Manual V1.0 Deutsch |
| LIVE-6 / LIVE-10 - Manual V1.0 ES Size: (8.22 MB) |
LIVE-6 / LIVE-10 - Manual V1.0 Español |
| LIVE-6 / LIVE-10 - Manual V2.0 EN Size: (4.78 MB) |
LIVE-6 / LIVE-10 - Manual V2.0 English - For serial numbers starting with BGL-2309 or higher |
| LIVE-6 / LIVE-10 - Manual V2.0 NL Size: (4.58 MB) |
LIVE-6 / LIVE-10 - Manual V2.0 Nederlands - Voor serienummers beginnend met BGL-2309 of hoger |
| LIVE-6 / LIVE-10 - Manual V2.0 FR Size: (4.61 MB) |
LIVE-6 / LIVE-10 - Manual V2.0 Français - Pour les numéros de série commençant par BGL-2309 ou supérieur |
| LIVE-6 / LIVE-10 - Manual V2.0 DE Size: (4.5 MB) |
LIVE-6 / LIVE-10 - Manual V2.0 Deutsch - Für Seriennummern, die mit BGL-2309 oder höher beginnen |
| LIVE-6 / LIVE-10 - Manual V2.0 ES Size: (4.55 MB) |
LIVE-6 / LIVE-10 - Manual V2.0 Español - Para números de serie que empiecen por BGL-2309 o superior |
| LIVE-10 - EC Declaration Size: (454.06 KB) |
LIVE-10 - EC Declaration of Conformity |
| LIVE-10 PDF leaflet Deutsch Size: (1.54 MB) |
PDF_LEAFLET_LIVE-10_B08404_de.pdf |
| LIVE-10 PDF leaflet English Size: (1.54 MB) |
PDF_LEAFLET_LIVE-10_B08404_en.pdf |
| LIVE-10 PDF leaflet Français Size: (1.54 MB) |
PDF_LEAFLET_LIVE-10_B08404_fr.pdf |
| LIVE-10 PDF leaflet Nederlands Size: (1.54 MB) |
PDF_LEAFLET_LIVE-10_B08404_nl.pdf |
