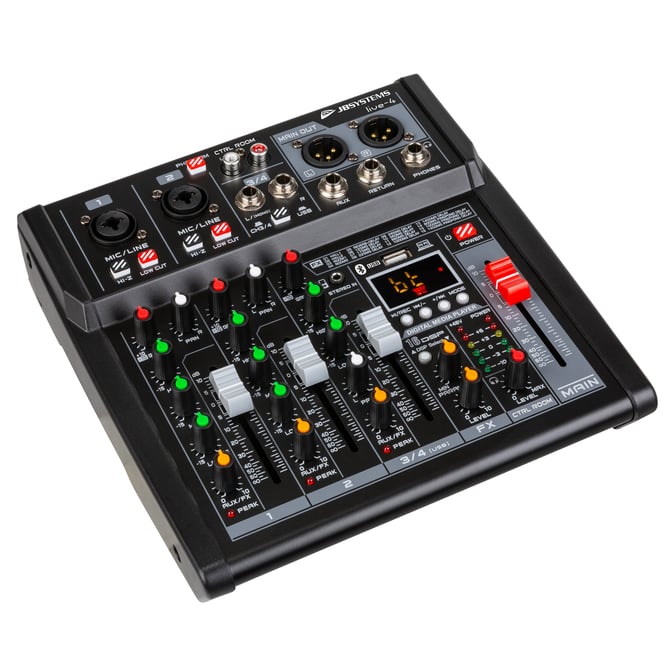

- Versatile PA mixer in a handy compact format
- 4 inputs over 3 channels (2 mic/line, 1 mono/stereo line /USB/player)
- Integrated Bluetooth receiver
- The USB connector on the top panel is Bidirectional (for stereo recording or playback via PC/Mac)
- Internal WMA, WAV, FLAC, APE and MP3 media player for USB memory sticks
- The media player can also be used as a stereo recorder
- Internal DSP-effect unit with 16 effects + separate parameter control
- HI-Z, LOW CUT and 48V Phantom power switches on the MIC/LINE channels
- Balanced Master output
- Headphones + control room output with level control

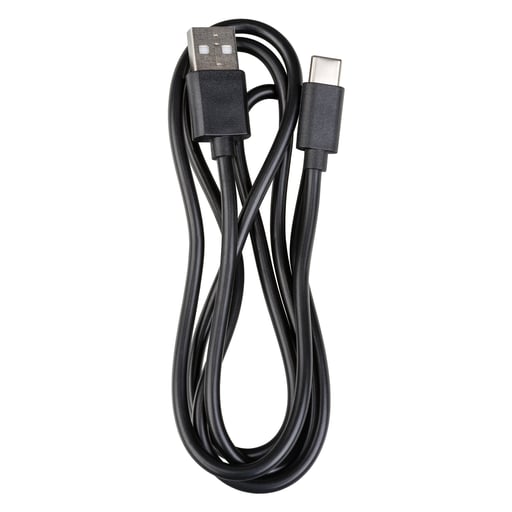

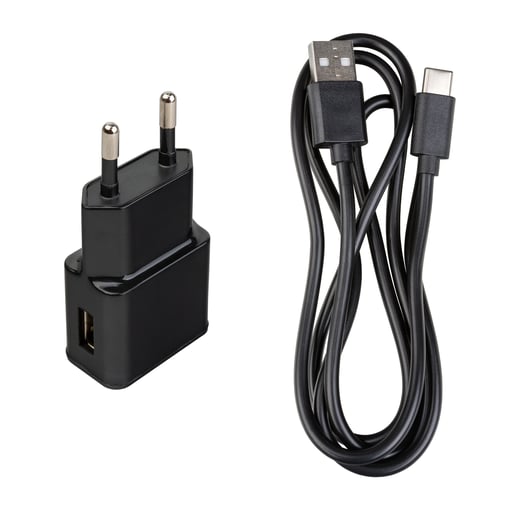

- Powered by a 5V USB C connector
- Combine it with a power bank and battery powered speakers to be 100% mobile
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 22(W) x 23(D) x 6(H) |
|---|---|
| General : Weight (kg) | 1.23 |
| General : Powerinput | USB 5Vdc |
| General : Energy Label | No |
| General : Power consumption W | 5 |
| General : Color | black |
| General : Display | No |
| General : RU | No |
| Audio : min. frequency (Hz) | 20 |
| Audio : max. frequency (Hz) | 20000 |
| Audio : supported audio formats | APE, FLAC, MP3, WAV, WMA |
| Audio : supported audio media | USB |
| Audio : functions | equalizer, sound effects |
| Connections : input | 3 pin XLR, jack, usb, bluetooth |
| Connections : output | 3 pin XLR, rca, jack |
| Brand | JB SYSTEMS |
| EANCode | 5420025684071 |
Manual & Downloads
Manual & Downloads
 LIVE-4 - Manual EN Size: (3.53 MB) |
LIVE-4 - Manual English |
| LIVE-4 - Manual NL Size: (3.56 MB) |
LIVE-4 - Manual Nederlands |
| LIVE-4 - Manual FR Size: (3.58 MB) |
LIVE-4 - Manual Français |
| LIVE-4 - Manual DE Size: (3.54 MB) |
LIVE-4 - Manual Deutsch |
| LIVE-4 - Manual ES Size: (3.58 MB) |
LIVE-4 - Manual Español |
| LIVE-4 - EC Declaration Size: (453.85 KB) |
LIVE-4 - EC Declaration of Conformity |
| LIVE-4 PDF leaflet Deutsch Size: (1006.84 KB) |
PDF_LEAFLET_LIVE-4_B08407_de.pdf |
| LIVE-4 PDF leaflet English Size: (1009.08 KB) |
PDF_LEAFLET_LIVE-4_B08407_en.pdf |
| LIVE-4 PDF leaflet Français Size: (1006.45 KB) |
PDF_LEAFLET_LIVE-4_B08407_fr.pdf |
| LIVE-4 PDF leaflet Nederlands Size: (1007.35 KB) |
PDF_LEAFLET_LIVE-4_B08407_nl.pdf |
