Details
Details

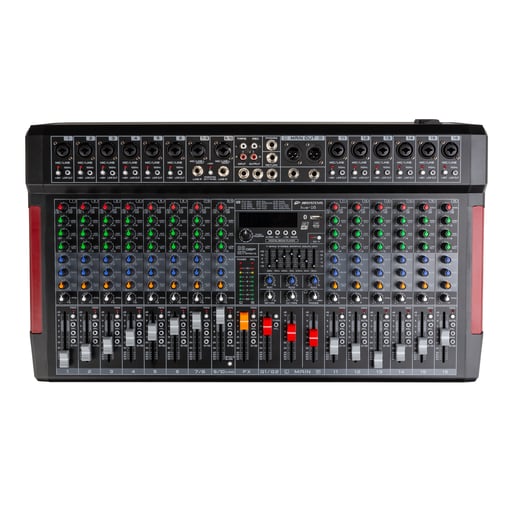

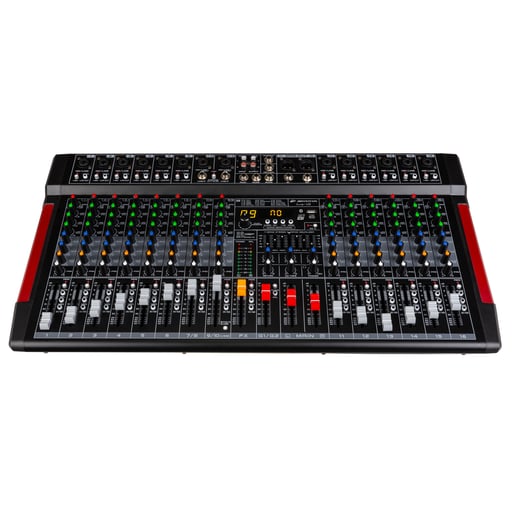

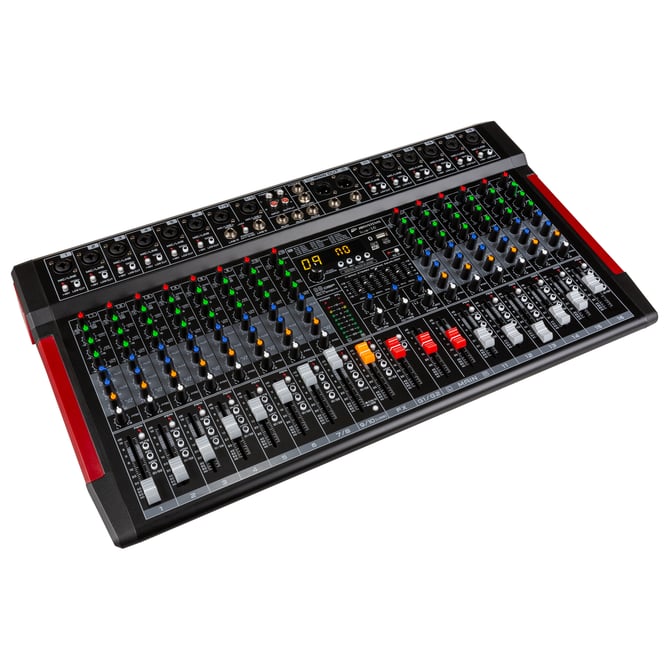

- Versatile PA mixer with excellent value for money!
- 16 inputs over 14 channels:
- 12 mic/mono line (combo)
- 1 mic/mono/stereo line
- 1 mic/mono/stereo line /USB/player
- Extra CD/tape input with level control + analog recording output
- Integrated Bluetooth receiver
- The USB connector is Bidirectional and can be used for stereo recording or playback via PC/Mac
- Internal WMA, WAV, FLAC, APE and MP3 media player for USB memory sticks
- The media player can also be used as a stereo recorder
- Internal DSP-effect unit with 99 effects variations
- Each channel has:
- Gain adjustment
- 3-band EQ
- 2 pre-fader aux sends
- 1 post-fader aux/FX send
- Pan adjustment
- Level fader
- Peak indicator
- Mute switch
- PFL switch
- Main out routing switch
- Group out routing switch
- Individual LOW CUT and 48V Phantom power switches on all the mono MIC/LINE channels
- Handy 7 band graphic equalizer for the main output (with IN/Bypass switch)
- Group 1/2 outputs (jack) with separate level control. Group 1/2 can also be routed directly to the main outputs.
- Balanced Main output (XLR)
- Headphones output with level control
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 63(W) x 38(D) x 12(H) |
|---|---|
| General : Weight (kg) | 6.64 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 35 |
| General : Color | black |
| General : Display | No |
| General : RU | No |
| Audio : min. frequency (Hz) | 20 |
| Audio : max. frequency (Hz) | 20000 |
| Audio : supported audio formats | APE, FLAC, MP3, WAV, WMA |
| Audio : supported audio media | USB |
| Audio : functions | equalizer, sound effects |
| Connections : input | 3 pin XLR, rca, jack, usb, bluetooth, IEC |
| Connections : output | 3 pin XLR, rca, jack, usb |
| Brand | JB SYSTEMS |
| EANCode | 5420025684064 |
Manual & Downloads
Manual & Downloads
 LIVE-16 - Manual EN Size: (3.43 MB) |
LIVE-16 - Manual English |
| LIVE-16 - Manual NL Size: (3.46 MB) |
LIVE-16 - Manual Nederlands |
| LIVE-16 - Manual FR Size: (3.52 MB) |
LIVE-16 - Manual Français |
| LIVE-16 - Manual DE Size: (3.42 MB) |
LIVE-16 - Manual Deutsch |
| LIVE-16 - Manual ES Size: (3.49 MB) |
LIVE-16 - Manual Español |
| LIVE-16 - EC Declaration Size: (455.52 KB) |
LIVE-16 - EC Declaration of Conformity |
| LIVE-16 PDF leaflet Deutsch Size: (1.22 MB) |
PDF_LEAFLET_LIVE-16_B08406_de.pdf |
| LIVE-16 PDF leaflet English Size: (1.22 MB) |
PDF_LEAFLET_LIVE-16_B08406_en.pdf |
| LIVE-16 PDF leaflet Français Size: (1.22 MB) |
PDF_LEAFLET_LIVE-16_B08406_fr.pdf |
| LIVE-16 PDF leaflet Nederlands Size: (1.22 MB) |
PDF_LEAFLET_LIVE-16_B08406_nl.pdf |
